3–5 Ton Rear Articulated Rough Terrain Forklift for Sale

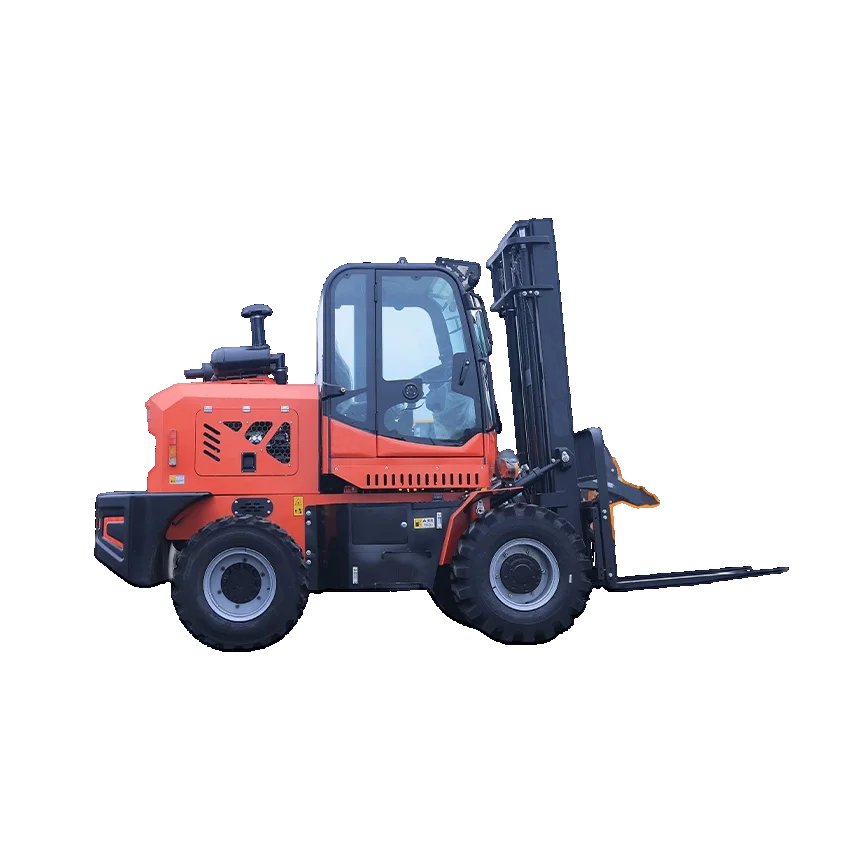

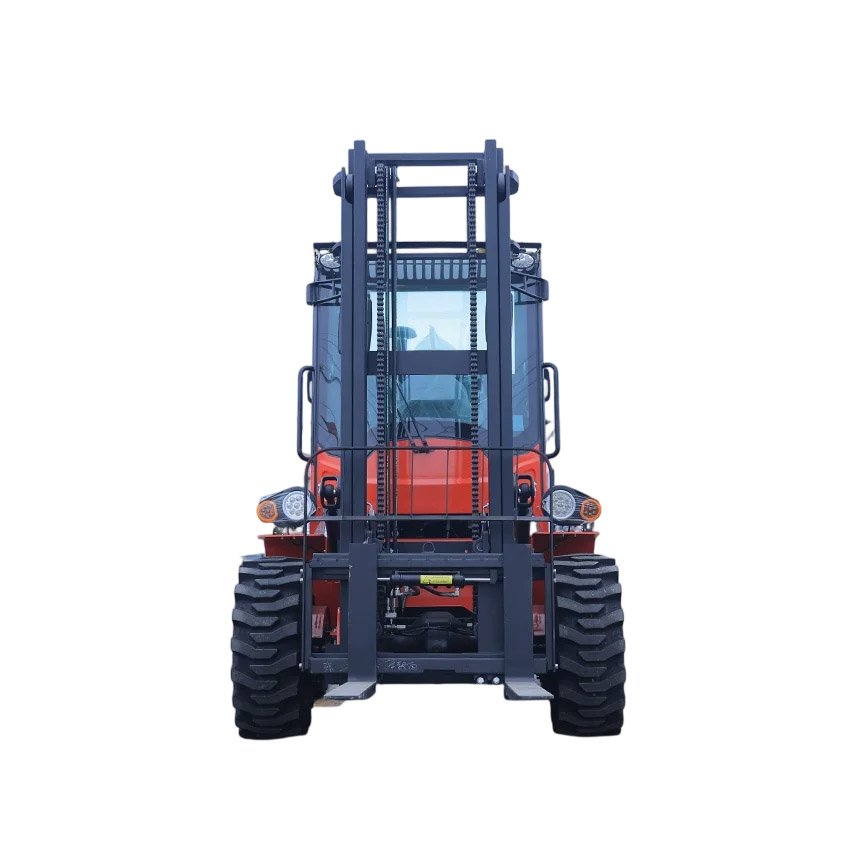

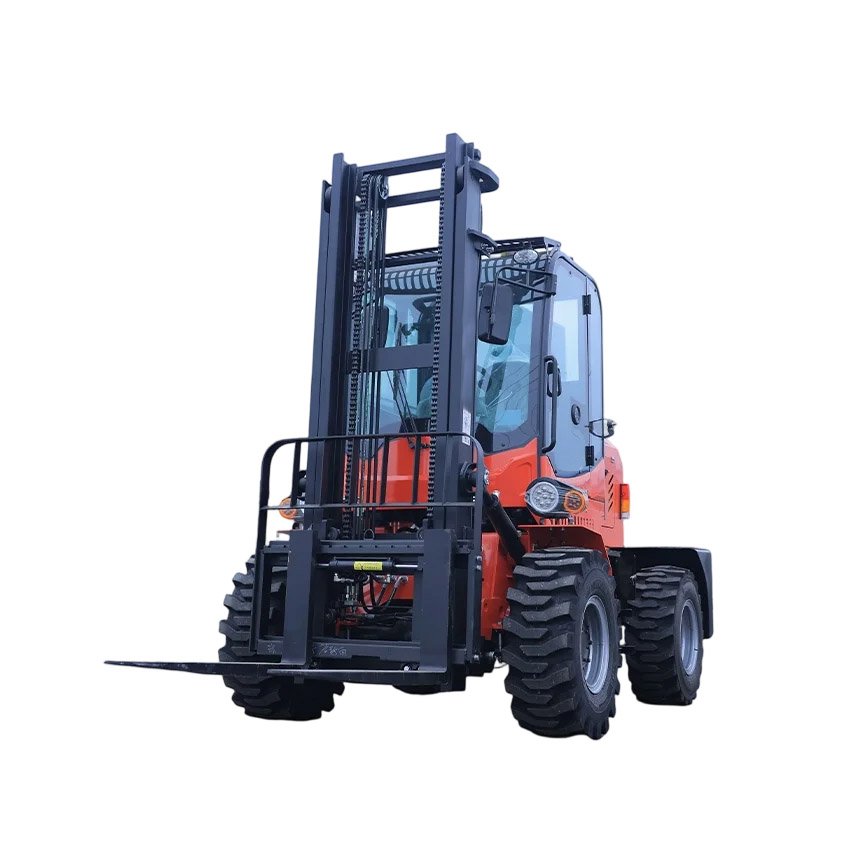

Rear Steering Rough Terrain Forklift HC

The 3–5 ton rear articulated rough terrain forklift for sale HC is designed for flexible and efficient material handling in narrow and complex outdoor environments. With a rear steering structure, 4×4 drive system, and reinforced hydraulic control, it delivers excellent maneuverability and stability on uneven, muddy, and sloped terrain. Supporting a 3,000–5,000 kg load capacity and customizable lifting height, this model is widely used in construction sites, farms, and industrial outdoor operations requiring both power and flexibility.
Exclusive rear steering structure enhances flexibility in narrow areas. Shock-absorbing chassis and off-road tires guarantee safe and efficient operation on rugged and undulating ground.

Forklift

Rear Steering Rough Terrain Forklift HC

The JUSTAR 3–5 Ton Rear-Articulated 4×4 Rough Terrain Diesel Forklift is engineered to deliver exceptional stability and performance in the most challenging work environments. Featuring a rear-articulated steering system and robust 4-wheel drive, it combines a 3,000–5,000 kg load capacity with superior off-road mobility, making it the ideal solution for reliable material handling in uneven, unpaved, and harsh terrain conditions.
Looking for a flexible 3–5 ton rear articulated rough terrain forklift for sale for your project?
Contact us today to get detailed specifications, factory pricing, and customization options. Our team will respond within 24 hours with a tailored solution for your working conditions.

EPA Certified Kubota Engine Factory Direct Price

[ 4.9 ] 15 REVIEWS

Minimum Order Quantity: 5

Get Best Price Add To Card

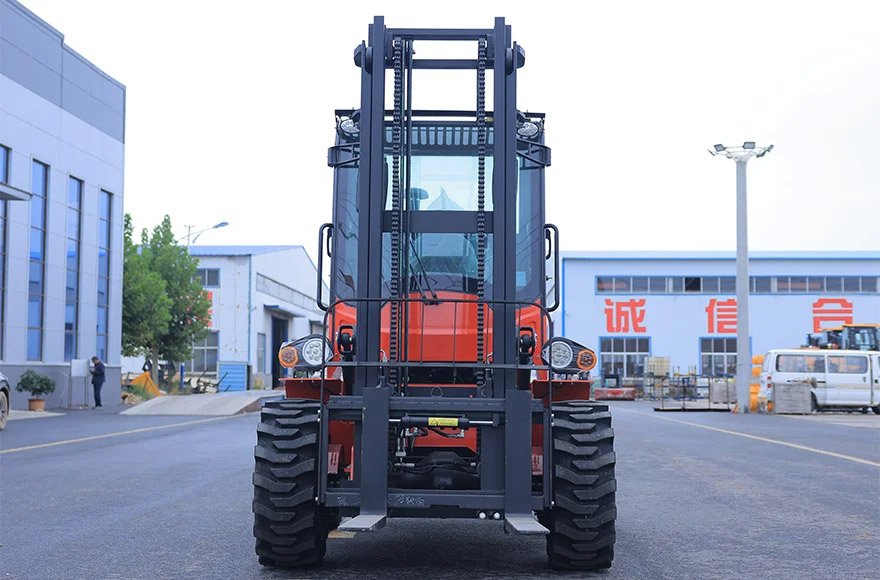

Overview and Introduction

Unmatched Off-Road Stability & Traction 4×4 All-Wheel Drive & 35° Gradeability: Delivers a full-load traction force of 40 kN, ensuring unbeatable grip on muddy, rocky, or sloped terrain, and enabling seamless climbing of steep inclines without slipping. Rear-Articulated Steering: The rear-articulated design provides enhanced load stability during turns, with a minimum turning radius of 4,300 mm, balancing maneuverability and safety even under maximum capacity. Rugged Drivetrain: Equipped with cast steel wheel-side drive axles and 20.5-70-16 heavy-duty tires, it offers exceptional ground clearance and durability to withstand impacts from rough terrain.

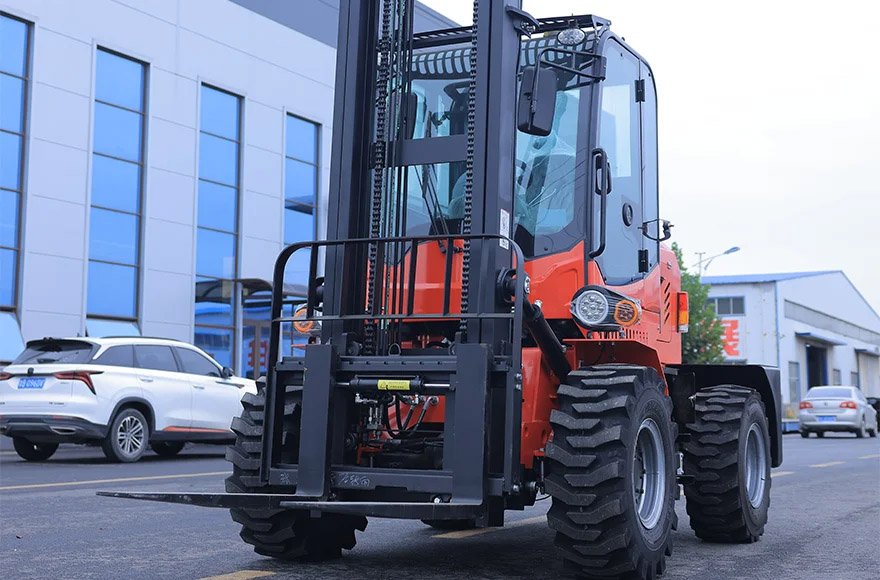

Advantages and Features

Flexible Lifting & Load Security Adjustable Capacity & Lift Range: Supports a 3,000–5,000 kg maximum load and customizable lifting heights (3–6 meters), adapting to diverse material handling requirements. Reinforced Load Handling: Features a 600 mm load center distance, 1,220 mm forged fork, and 12° forward / 6° backward tilt, ensuring secure load retention and precise placement. Precise Hydraulic Control: The robust hydraulic system enables smooth, responsive control of lifting, tilting, and fork movements, guaranteeing accurate load handling in all conditions.

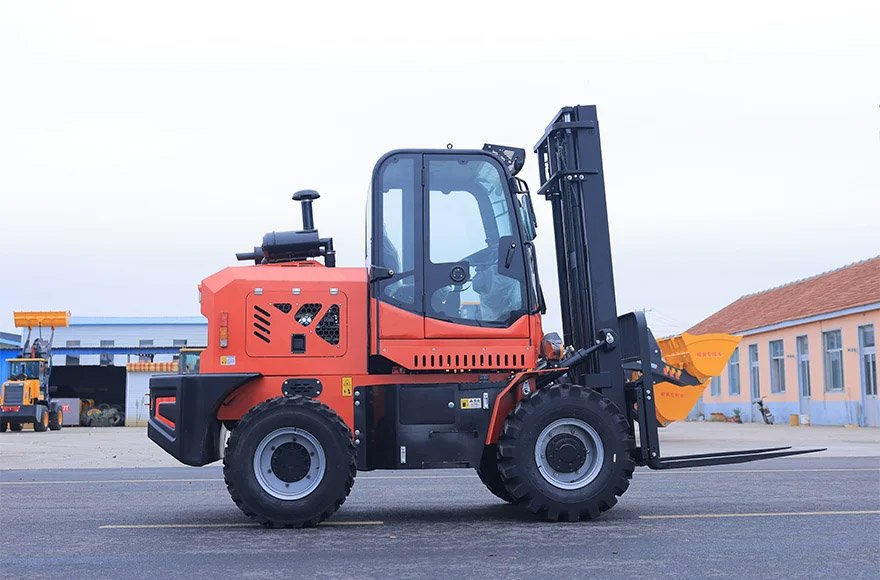

Details and Advantages

Reliable Power & Safe Operation Efficient Powertrain: Powered by a Quanchai 490 turbocharged engine (55 kW) paired with a Jinlite 265 torque converter transmission, it delivers strong torque and a top speed of 35 km/h, balancing power and fuel efficiency. Dual Safety Braking: Combines manual and air braking systems for responsive, reliable stopping power, enhancing safety across all working scenarios. Intuitive Operator Interface: A 24V electrical system, full lighting/signal suite (headlights, turn signals, brake lights, reverse horn), and LCD dashboard provide clear visibility and real-time operational data.

Functions and Applications

Warehousing & Logistics: Ideal for e-commerce fulfillment centers, retail warehouses, and distribution yards, where LPG’s clean operation and low cost support indoor and outdoor material handling.

PRODUCT PARAMETER

Technical Parameters

Length × Width × Height (mm)	3700 × 1850 × 2500	Lighting & Signals	Headlight, turn signal, brake light, reverse horn
Maximum Lifting Weight (kg)	3000–5000	Dashboard	LCD display
Rated Lift Height (m)	3–6	Drive Axle	Cast steel wheel-side axle
Load Center Distance (mm)	600	Tire Model	20.5-70-16
Minimum Turning Radius (mm)	4300	Steering Type	Rear articulated
Max. Traction Force at Full Load (kN)	40	Braking Method	Manual brake + pneumatic brake
Operating Weight (kg)	4600	Fork Length (mm)	1220mm forged fork
Gradeability (°)	35	Steering Mode	Hydraulic power steering
Forward/Backward Tilt Angle (°)	12 / 6	Drive Mode	Four-wheel drive
Voltage (V)	24	Operator Cab	Fully enclosed luxury cab
Transmission	Jinlite 265 torque converter	Engine Model	Quanchai 490 turbocharged
Travel Speed (km/h)	35	Power (kW)	55

CUSTOMER QUESTIONS & ANSWERS

How do I place an order?

What documents do you provide for export?

Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Do you provide after-sales service overseas?

Yes, we have partnered service centers in key regions.

What's the lead time for orders?

Standard models ship in 15–30 days; customized units require 30–45 days.
