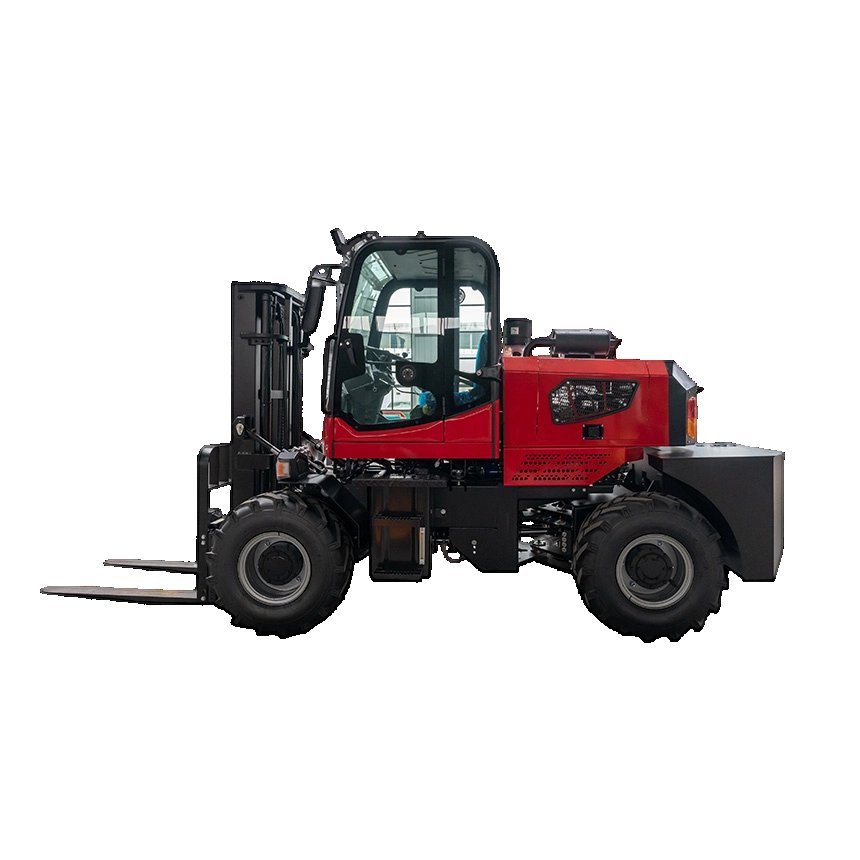

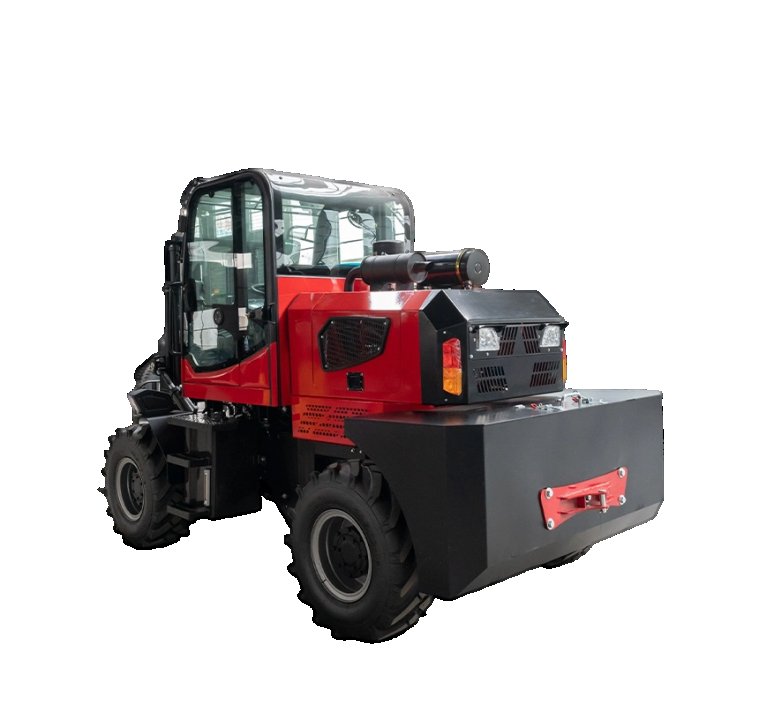

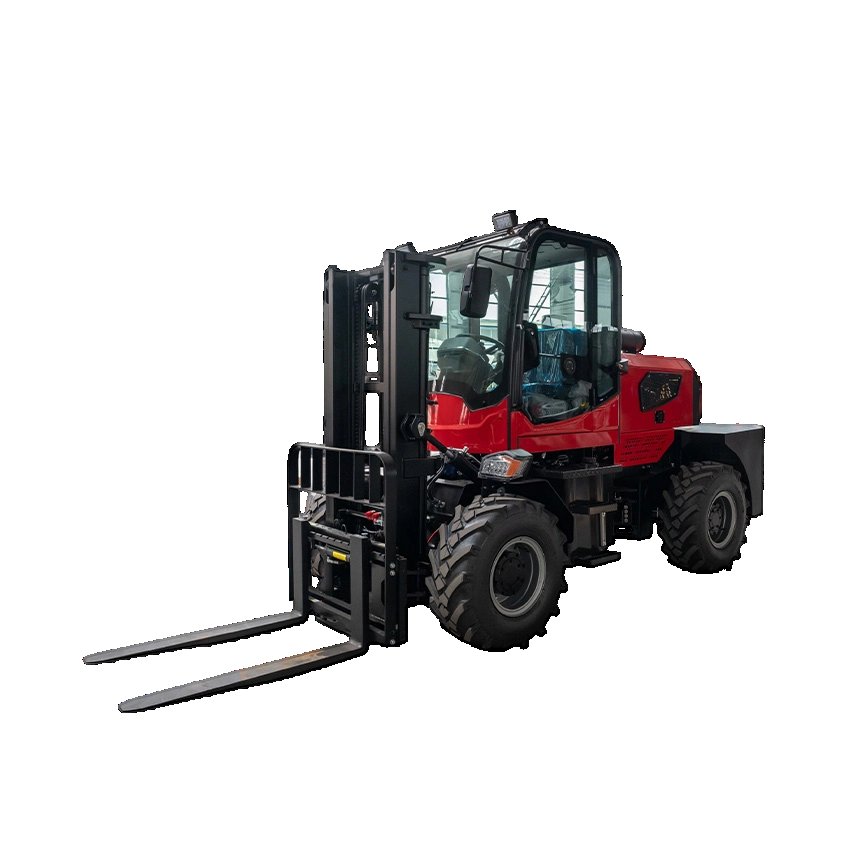

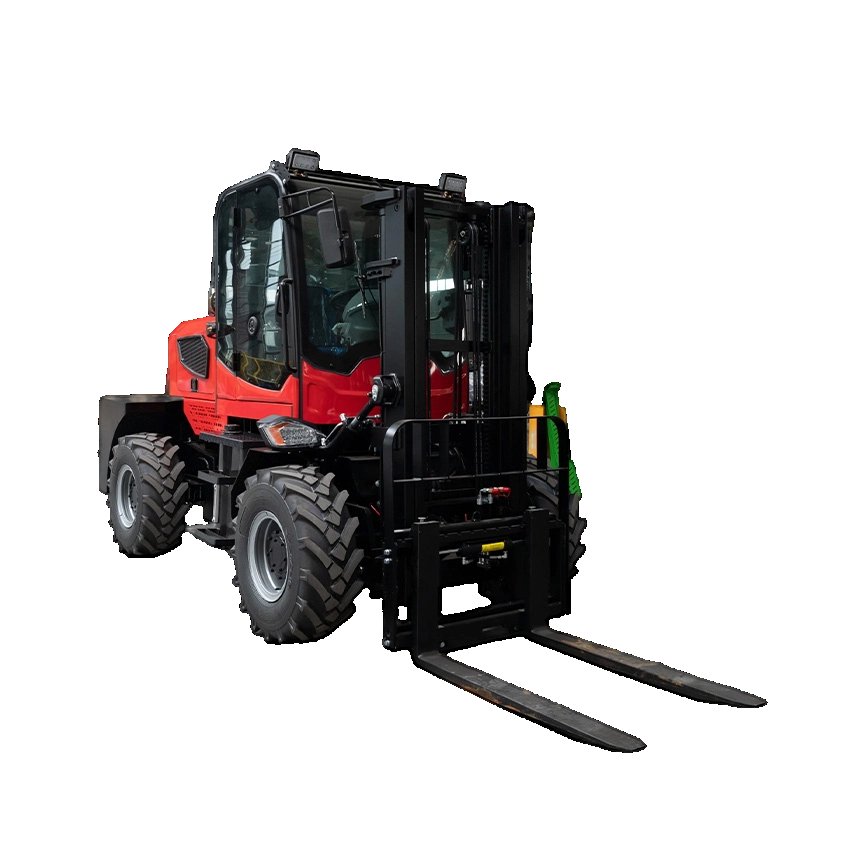

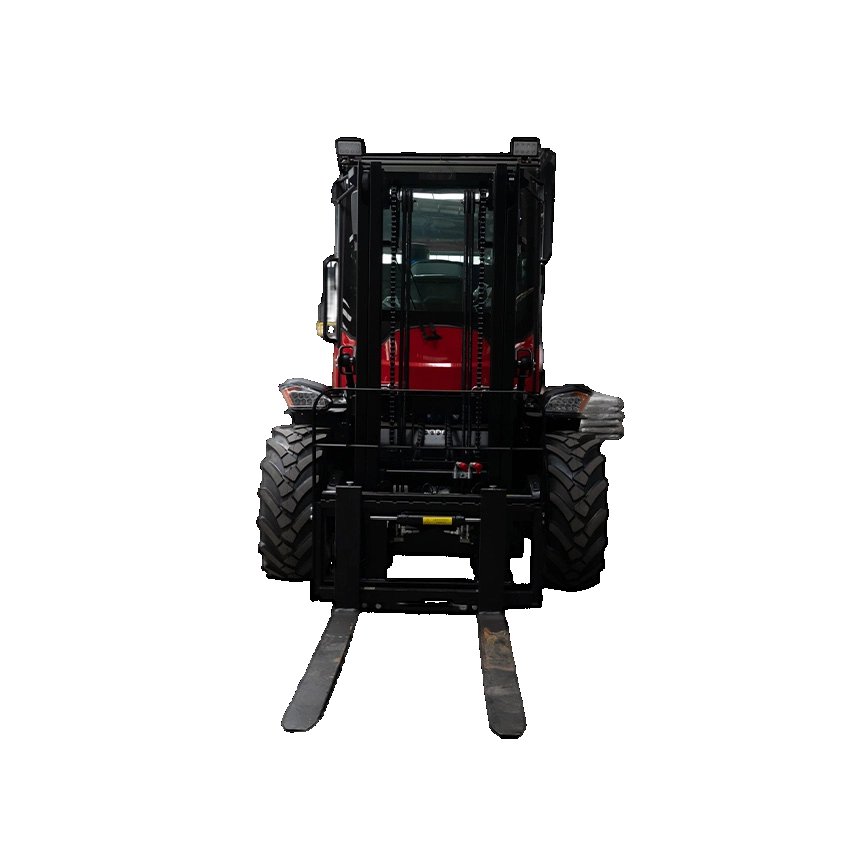

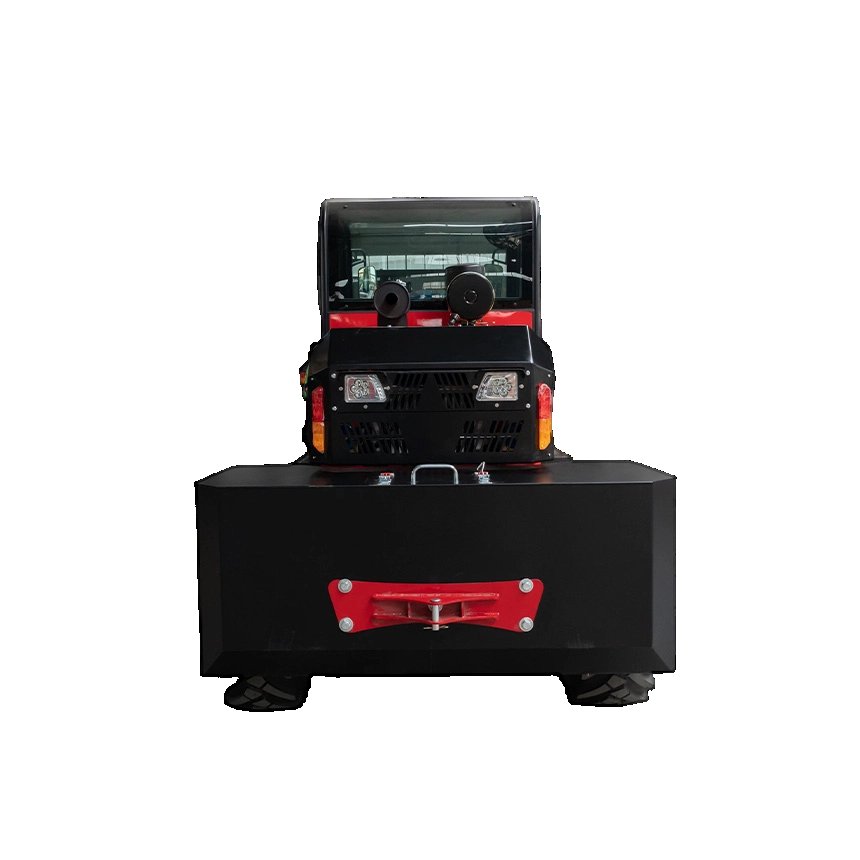

3.5 Ton Rear Articulated 4WD Rough Terrain Forklift

3.5T Rear Articulated 4WD Forklift HC

The 3.5T rear articulated 4WD rough terrain forklift is engineered for reliable performance in challenging outdoor environments. With a compact structure, strong off-road traction, and a 3.5-ton lifting capacity, it is ideal for construction sites, agricultural fields, and uneven terrain operations. The reinforced chassis, high ground clearance, and wide tires ensure stability and safety even on muddy, rocky, or sloped surfaces, making it a practical solution for versatile material handling needs.

Forklift

3.5T Rear Articulated 4WD Forklift HC

Our 3.5 Ton Rough Terrain Forklift is purpose-built to conquer the most challenging work environments where standard forklifts cannot operate. Combining heavy-duty load capacity with exceptional off-road mobility, this model delivers reliable material handling performance across uneven, unpaved, and rough terrain—making it the ideal solution for industries demanding versatility and durability.
Looking for a compact and powerful 3.5 ton rough terrain forklift for your project?
Contact us now to get detailed specifications, factory direct pricing, and customization options. Our team will provide professional support and respond to your inquiry within 24 hours.

EPA Certified Kubota Engine Factory Direct Price

[ 4.9 ] 16 REVIEWS

Minimum Order Quantity: 5

Get Best Price Add To Card

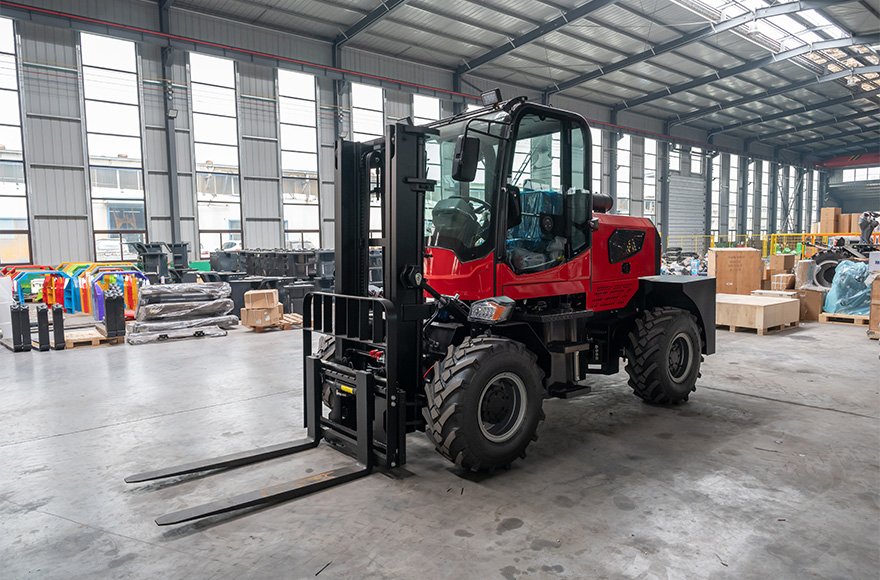

Overview and Introduction

Unmatched Off-Road Capability Equipped with large, deep-tread off-road tires and a high ground clearance chassis, this forklift effortlessly navigates muddy construction sites, gravelly mining areas, and sloped forest paths. The robust four-wheel drive system ensures maximum traction, preventing slippage even on wet or loose surfaces, so operations run smoothly regardless of terrain conditions.

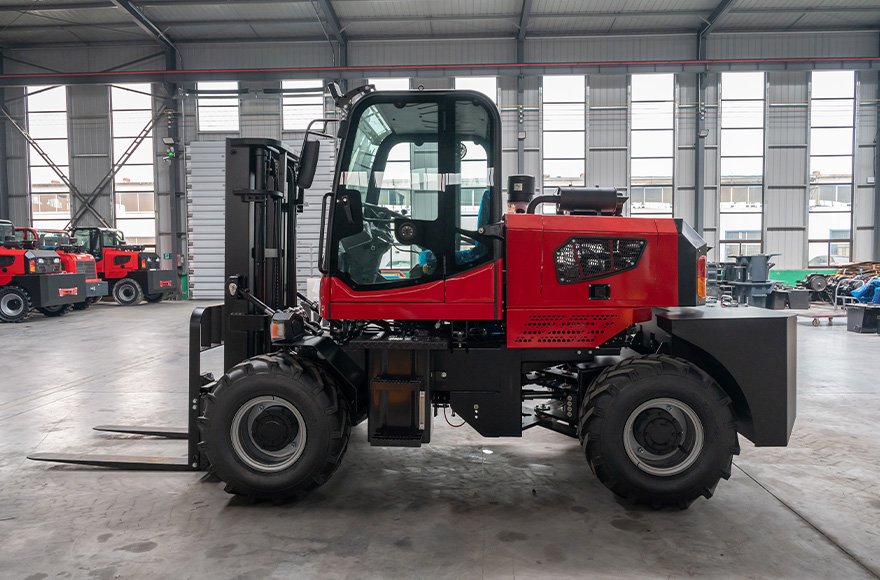

Advantages and Features

Stable 3.5 Ton Load Capacity With a rated load capacity of 3.5 tons, it is perfectly sized for handling medium-sized loads—from construction materials and agricultural produce to industrial equipment. The heavy-duty mast and fork assembly, crafted from high-strength steel, provide stable lifting and secure load retention, minimizing accident risks during transport.

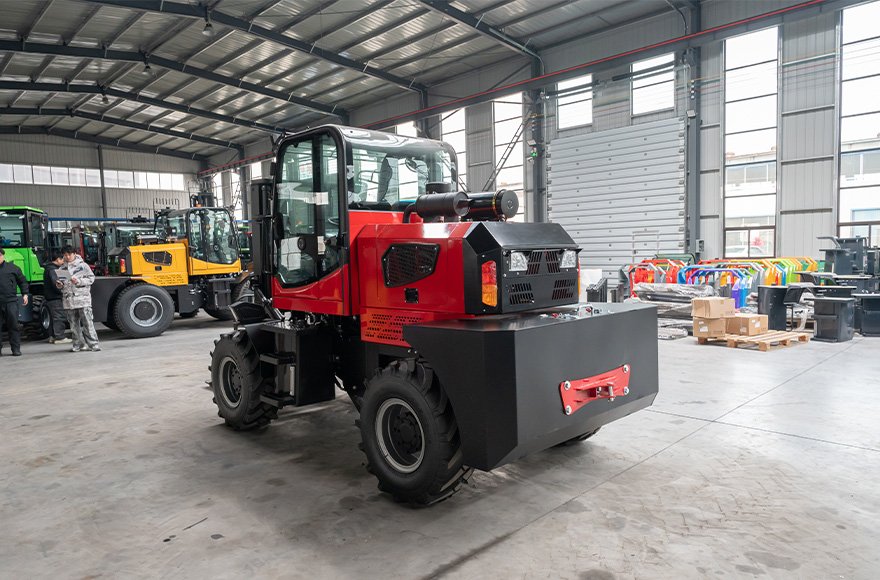

Details and Advantages

Efficient Power & Precise Control Powered by a fuel-efficient diesel engine, it delivers high torque for heavy lifting and steep inclines, ensuring consistent performance without compromising fuel economy. The hydraulic system enables smooth, precise control of lift and tilt functions, allowing accurate load placement even in tight spaces.

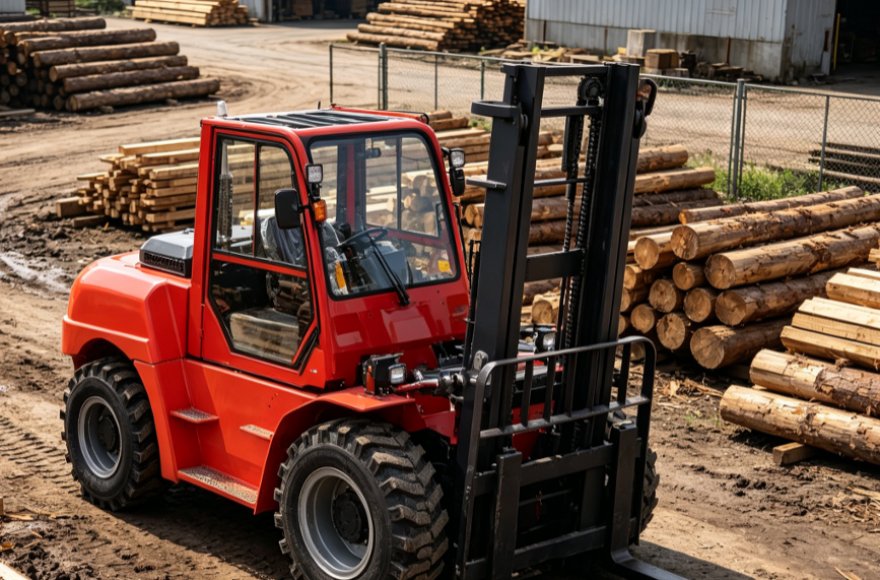

Functions and Applications

Construction Sites: Transport bricks, steel beams, and machinery across muddy, uneven job sites.

PRODUCT PARAMETER

Technical Parameters

Maximum Load Capacity	3500 kg	Total Weight	4450 kg
Fork Length	1.22 m (customizable)	Wheelbase	2250 mm
Lifting Height	Standard 3 m (3–6 m customizable)	Minimum Turning Radius (Outer)	3600 mm
Gearshift	Automatic (dual high/low speed with road gear)	Front Tire Size	23.5/70-16 wide reinforced
Transmission	Integrated with Jinlite 265 Torque Converter	Rear Tire Size	23.5/70-16 wide reinforced
Engine	Yunnei National IV 493 / 37 kW (optional)	Drive Axle	Reinforced cast steel small wheel-side reduction axle
Overall Length	3700 mm	Braking System	Air brake (four-wheel disc brake)
Overall Width	1800 mm	Maximum Travel Speed	30 km/h
Overall Height	2450 mm	Maximum Gradeability	35°

CUSTOMER QUESTIONS & ANSWERS

How do I place an order?

What documents do you provide for export?

Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Do you provide after-sales service overseas?

Yes, we have partnered service centers in key regions.

What's the lead time for orders?

Standard models ship in 15–30 days; customized units require 30–45 days.
