The 4WD Diesel Rough Terrain Forklift is engineered for demanding outdoor material handling operations on uneven and challenging terrain. Featuring all-wheel drive, powerful lifting performance and reinforced structural design, it delivers excellent stability, traction and productivity on construction sites, farms and industrial yards.
EPA Certified Kubota Engine Factory Direct Price
[ 4.9 ] 23 REVIEWS

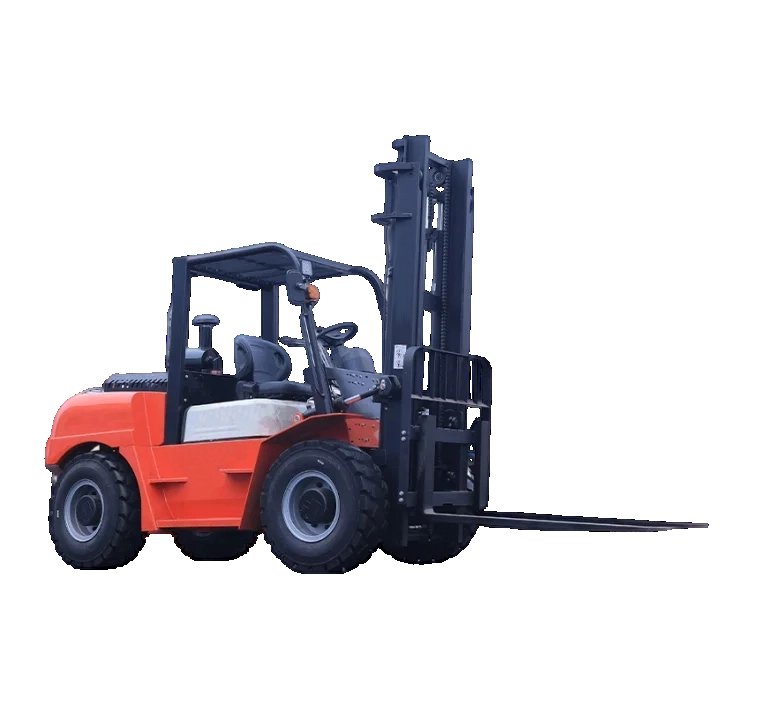

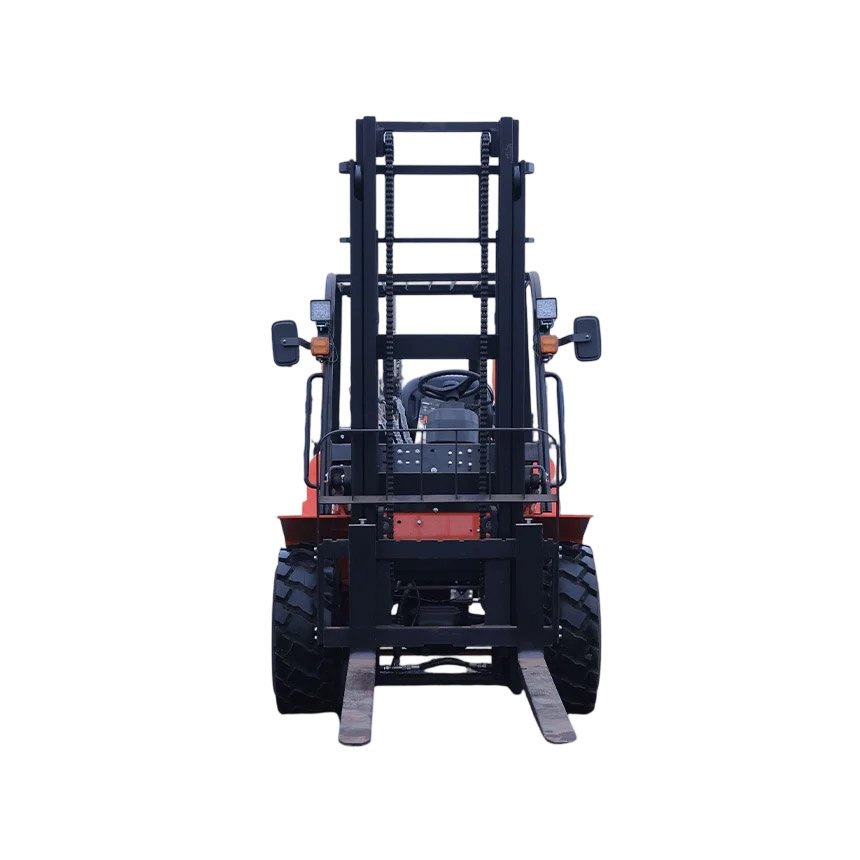

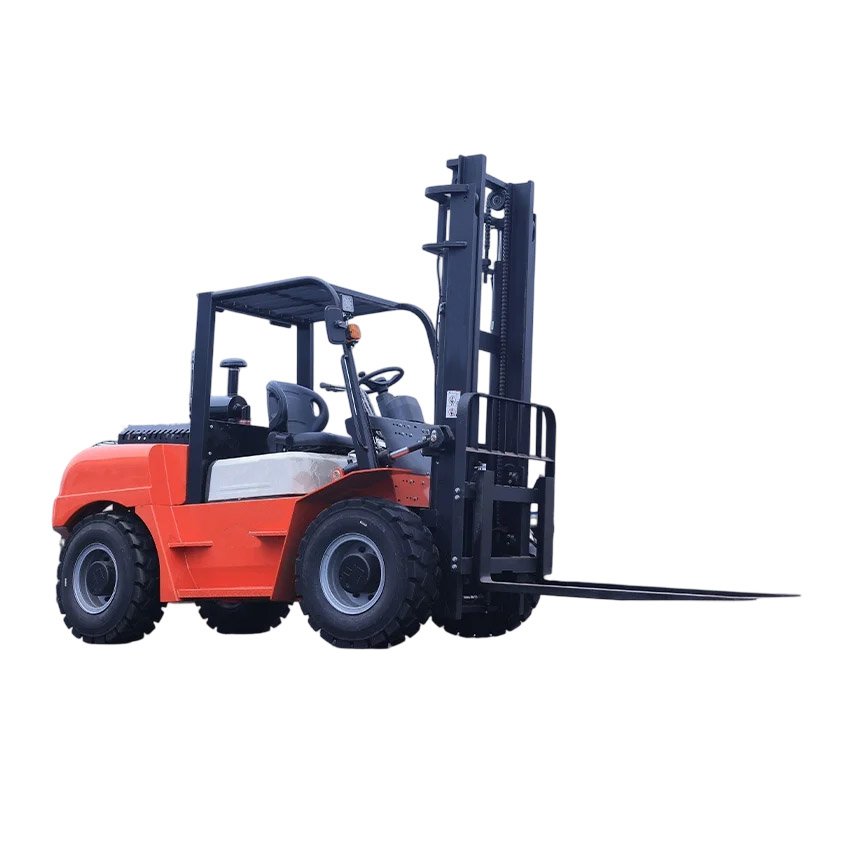

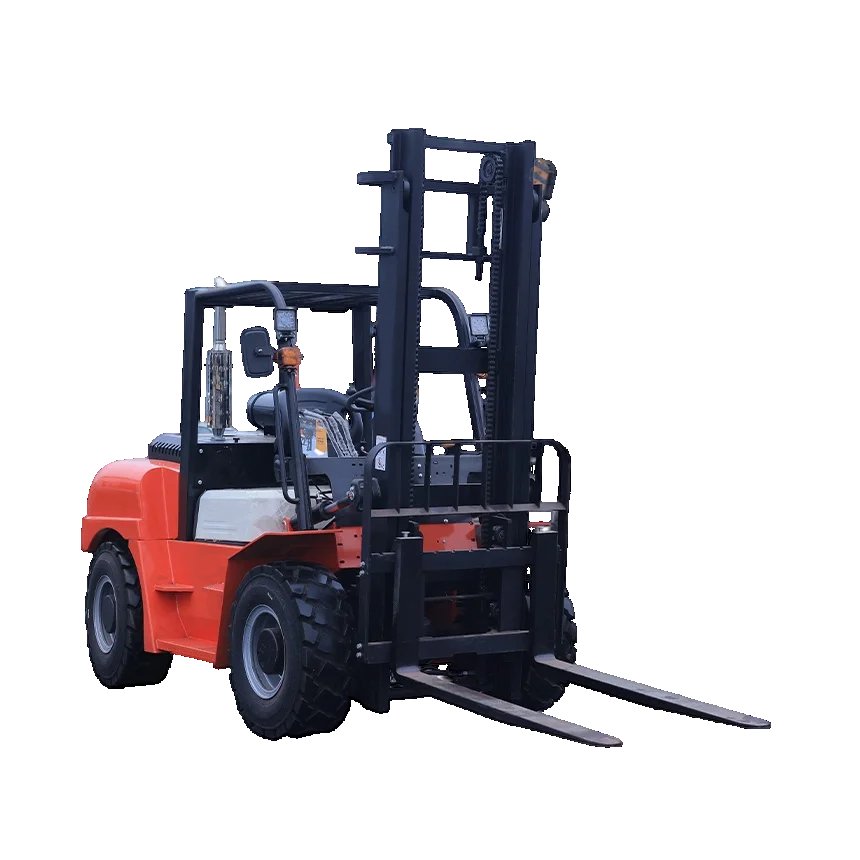

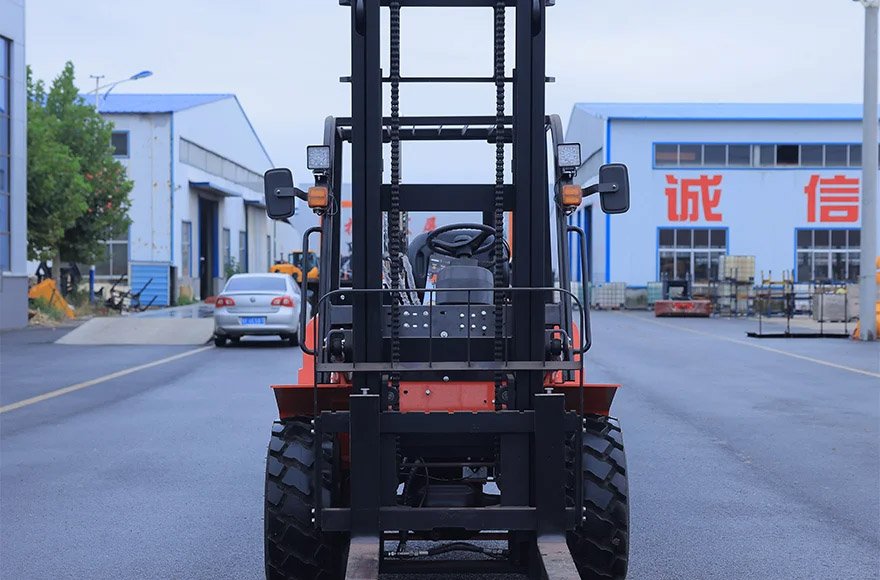

The K-35 Integrated Rough Terrain Diesel Forklift is a compact yet robust material handling solution, purpose-built to thrive in both indoor and outdoor uneven environments. With a maximum lifting capacity of 3,000–5,000 kg and an integrated 4×4 drivetrain, it balances maneuverability, durability, and efficiency—making it the ideal workhorse for businesses operating in complex terrain conditions.
Need a reliable forklift for rough outdoor conditions? Contact our team for detailed specifications, lifting height options and configuration recommendations. We will help you choose the most suitable rough terrain forklift for your working environment and load requirements.
EPA Certified Kubota Engine Factory Direct Price
[ 4.9 ] 23 REVIEWS

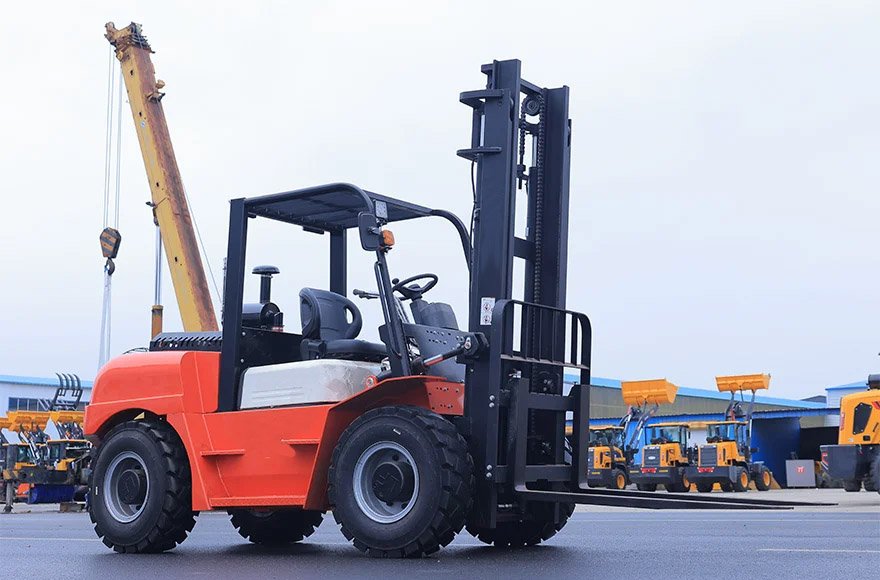

Superior Off-Road Maneuverability 4×4 All-Wheel Drive: Delivers reliable traction to navigate muddy, gravelly, or uneven surfaces without slipping, paired with a 20° climbing angle for stable performance on slopes. Rear-Wheel Steering & Compact Footprint: A minimum turning radius of just 2,300 mm and overall dimensions of 2,760×1,220×2,100 mm enable exceptional agility in confined spaces like narrow construction sites or warehouse aisles. Rugged Tire Design: Equipped with 28X-15 heavy-duty tires, it provides excellent ground contact and shock absorption, enhancing stability and passability on rough terrain.
Flexible Lifting & Load Stability Adjustable Capacity & Lift Range: Supports a 3,000–5,000 kg maximum load and customizable lifting heights (3–6 meters), adapting to diverse material handling needs. Reinforced Load Handling: Features a 600 mm load center distance, 1,220 mm forged fork, and reinforced sealed dual lifting cylinders, ensuring secure load retention and smooth tilting (12° forward / 6° backward tilt). Precise Hydraulic Control: Hydraulic power steering delivers intuitive, low-effort control, while the robust hydraulic system enables accurate load placement.

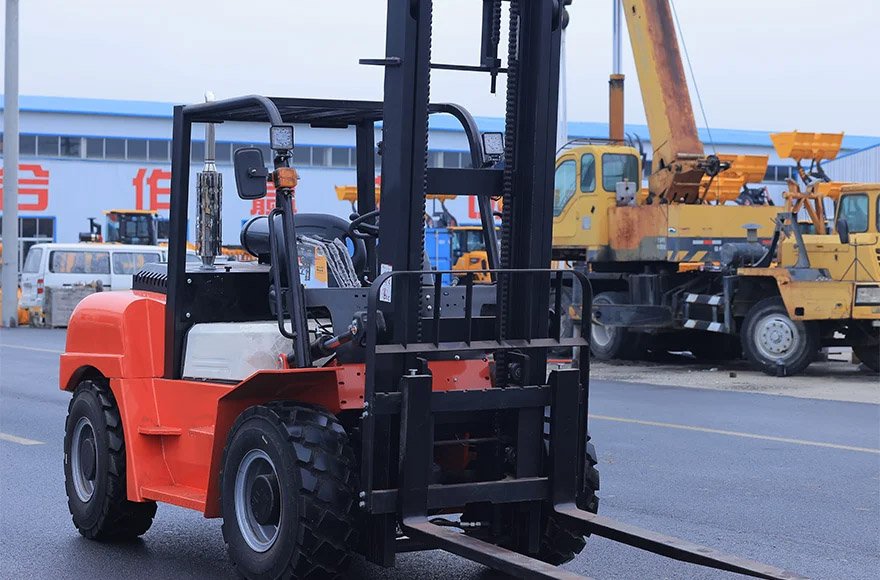

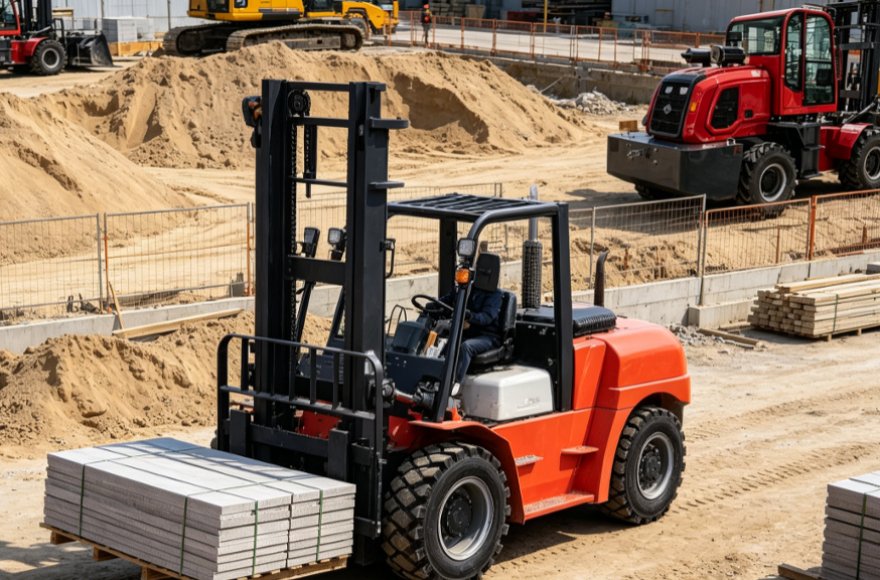

Construction Sites: Transports steel beams, concrete blocks, and heavy machinery across muddy, uneven job sites.
Warehousing & Logistics: Ideal for e-commerce fulfillment centers, retail warehouses, and distribution yards, where LPG’s clean operation and low cost support indoor and outdoor material handling.
Technical Parameters
| Length × Width × Height (mm) | 2760 × 1220 × 2100 | Lighting & Signals | Headlight, turn signal, brake light, reverse horn |
| Maximum Lifting Weight (kg) | 3000–5000 | Dashboard | LCD display |
| Rated Lift Height (m) | 3–6 | Tire Model | 28×15 |
| Load Center Distance (mm) | 600 | Steering Type | Rear-wheel steering |
| Minimum Turning Radius (mm) | 2300 | Braking Method | Manual brake + oil brake |
| Height (mm) | 2200 | Fuel Tank Capacity (L) | 60 |
| Operating Weight (kg) | 4800 | Lifting Cylinder | Reinforced sealed double cylinder |
| Gradeability (°) | 20 | Fork Length (mm) | 1220mm forged fork |
| Forward/Backward Tilt Angle (°) | 12 / 6 | Steering Mode | Hydraulic power steering |
| Voltage (V) | 24 | Engine Power (kW) | 55 |
| Travel Speed (km/h) | 23 | Drive Mode | Four-wheel drive |
Contact us via email/phone for a quote, then confirm with a PO.
Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Yes, we have partnered service centers in key regions.
Standard models ship in 15–30 days; customized units require 30–45 days.
This hybrid forklift adopts dual power design for low consumption and low noise. Sensitive hydraulic control ensures stable lifting, ideal for high-frequency material handling in warehouses and logistics yards.
Power : 42KW
Load Capacity : 3500KG
Weight : 4520KG
Specifications : 2852x1234x2186mm
Equipped with high-density lithium battery, this forklift supports fast charging and long service time. Zero emission and quiet operation make it perfect for indoor workshops, cold storage and closed working areas.
Power : 76.8KW
Load Capacity : 5000KG
Weight : 3650KG
Specifications : 3180x1458x2408mm
With mature battery configuration and low maintenance cost, this forklift features stable running and high cost performance. Simple operation meets daily cargo stacking and short-distance factory transportation.
Power : 72KW
Load Capacity : 2500KG
Weight : 3150KG
Specifications : 2350x1170x2170mm
Heavy 6.0 ton load capacity with four-wheel drive power output. Rear articulated steering realizes flexible turning, suitable for heavy-duty handling on construction sites and complex rugged terrain.
Power : 76KW
Load Capacity : 6000KG
Weight : 6550KG
Specifications : 3950x2500x2640mm
Compact 3.5 ton body with front articulated structure and flexible steering. Four-wheel drive provides strong adhesion, stably adapting to slopes, farmland and various harsh road conditions.
Power : 37KW
Load Capacity : 3500KG
Weight : 4350KG
Specifications : 3850x1800x2500mm
Optimized rear steering design with powerful 4WD performance. Reinforced chassis and wear-resistant tires ensure stable driving in muddy fields, bumpy roads and all outdoor complex scenarios.
Power : 37KW
Load Capacity : 3500KG
Weight : 4450KG
Specifications : 3700x1800x2450mm
High-torque engine provides steady power output. Balanced flexibility and load capacity, this off-road forklift is widely used in farm orchards, municipal engineering and outdoor cargo handling.
Power : 37KW
Load Capacity : 3500KG
Weight : 4450KG
Specifications : 3700x1800x2450mm
Lightweight 2.5 ton design with ultra-small turning radius. Flexible and compact structure, easily coping with narrow orchards, greenhouses and limited small-scale operation spaces.
Power : 37KW
Load Capacity : 2500KG
Weight : 3150KG
Specifications : 3200x1600x2400mm
Heavy-duty 7 ton grade with thickened body and upgraded hydraulic system. High-power engine supports long-time heavy load work, for large construction and bulk material transportation.
Power : 85KW
Load Capacity : 7000KG
Weight : 8500KG
Specifications : 5200x2200x3000mm
Exclusive rear steering structure enhances flexibility in narrow areas. Shock-absorbing chassis and off-road tires guarantee safe and efficient operation on rugged and undulating ground.
Power : 55KW
Load Capacity : 3500KG
Weight : 4800KG
Specifications : 3750x1800x2250mm
Unique front turning structure achieves agile steering and precise control. Excellent climbing and anti-slip performance, adapting to mountain slopes, gravel roads and changeable outdoor environments.
Power : 55KW
Load Capacity : 3000KG
Weight : 4600KG
Specifications : 3700x1850x2500mm
