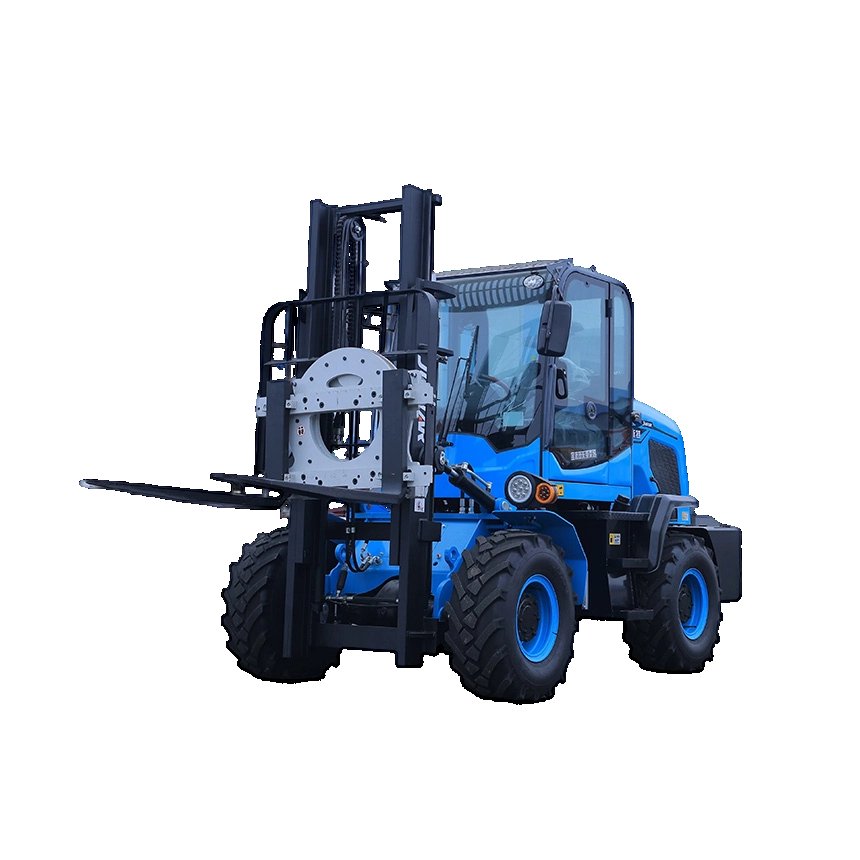

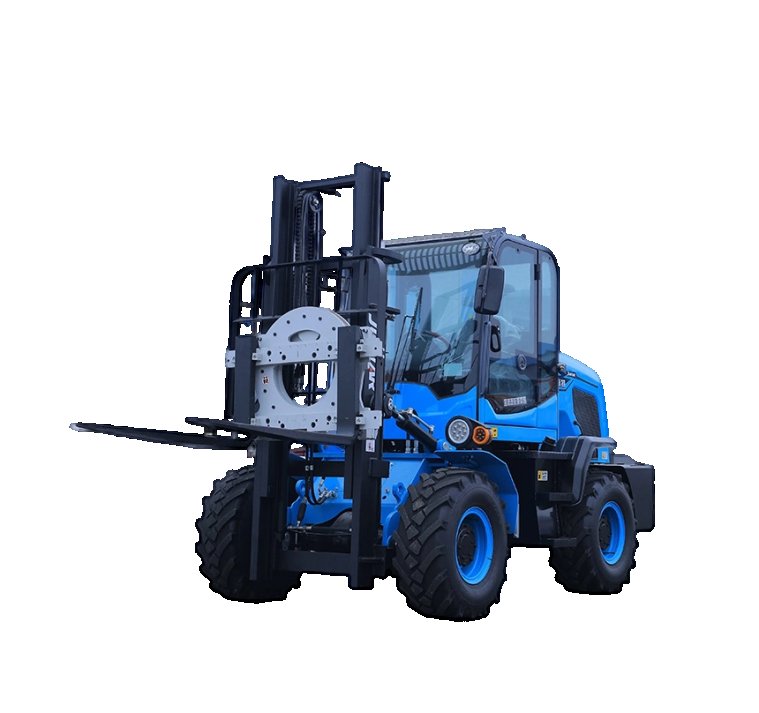

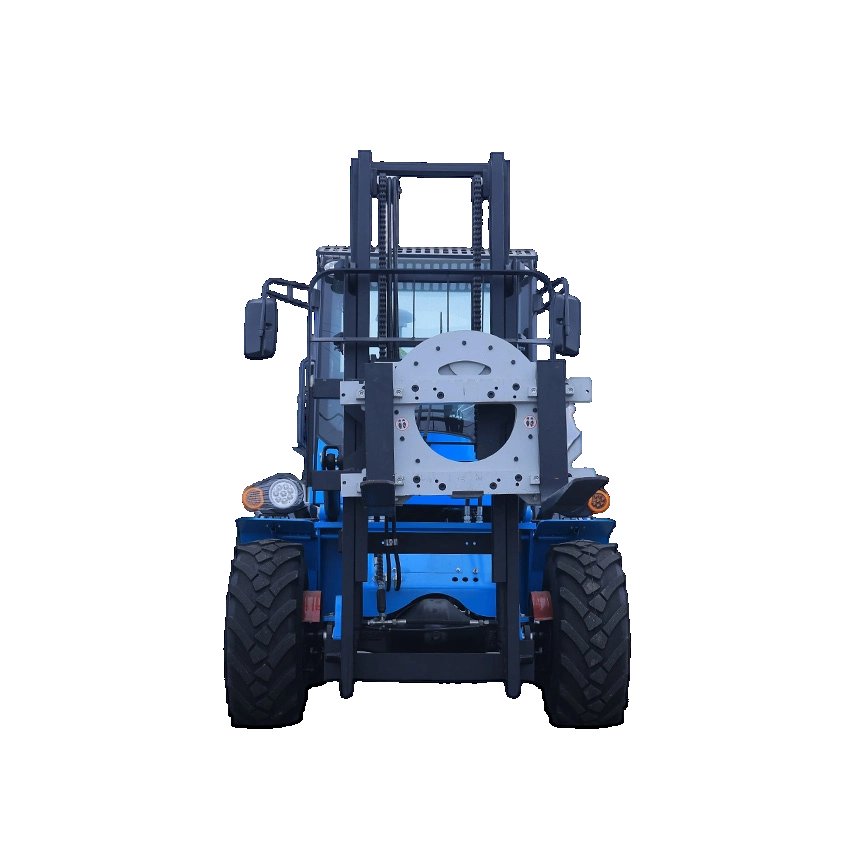

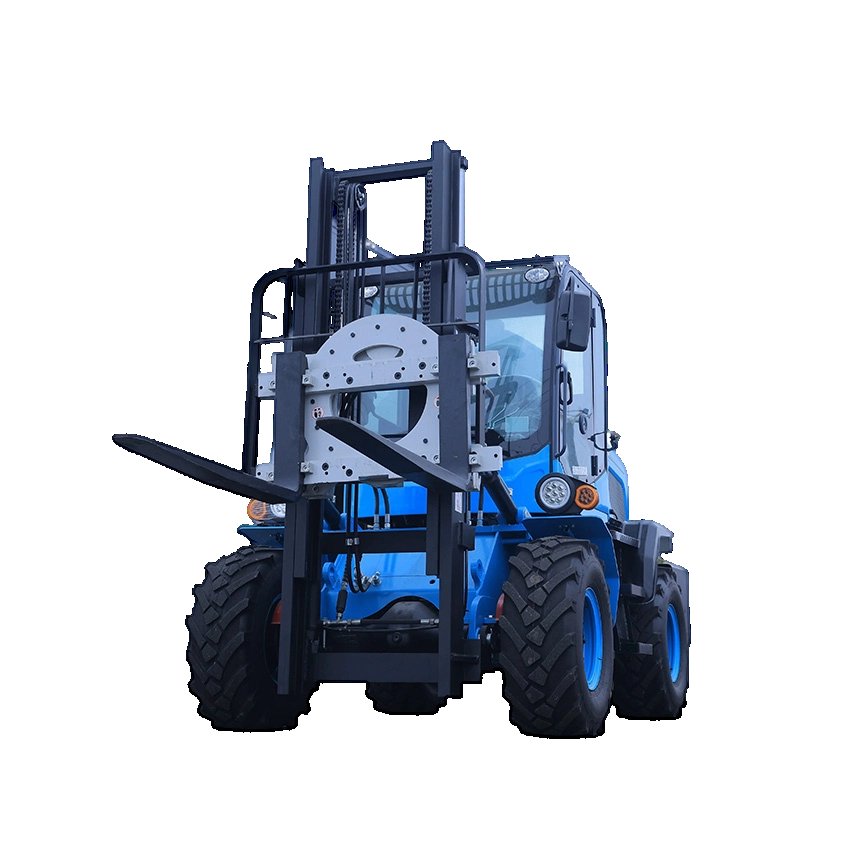

The 3–5 ton front turning off road forklift HC is designed for precise and flexible operation in rugged outdoor environments. Featuring a unique front steering structure, strong 4×4 drive system, and reinforced chassis, it delivers excellent maneuverability and stability on muddy, rocky, and uneven terrain. With a 3,000–5,000 kg load capacity and customizable lifting height, this model is widely used in construction, agriculture, and industrial outdoor logistics where both agility and reliability are required.Unique front turning structure achieves agile steering and precise control. Excellent climbing and anti-slip performance, adapting to mountain slopes, gravel roads and changeable outdoor environments.
EPA Certified Kubota Engine Factory Direct Price
[ 4.9 ] 7 REVIEWS

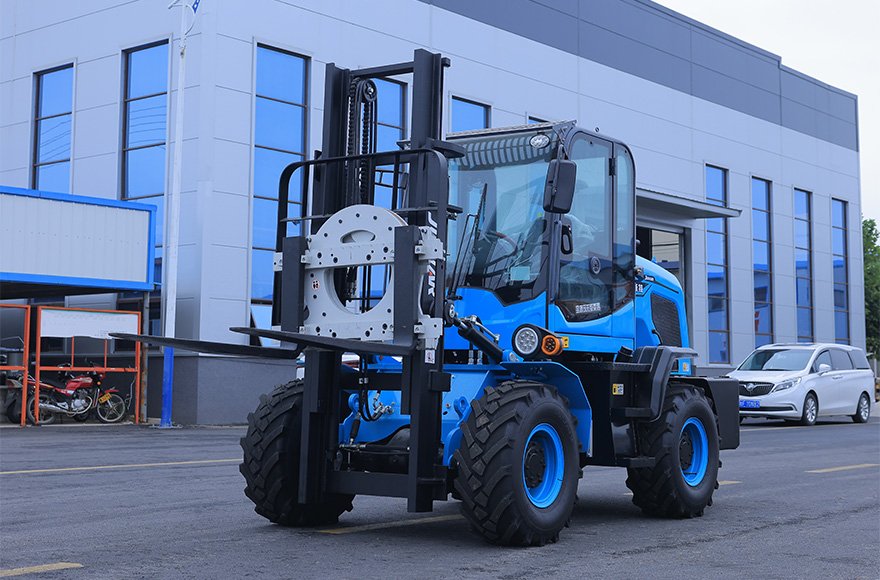

This 3–5 Ton Front-Articulated 4×4 Rough Terrain Diesel Forklift is engineered to master uneven, unpaved, and complex work environments where standard forklifts struggle. Combining a robust load capacity, advanced front-articulated steering, and powerful off-road performance, it delivers reliable material handling for industries demanding agility, durability, and versatility in harsh conditions.
Looking for a competitive front turning off road forklift price for your project?
Contact us today to get detailed specifications, factory direct pricing, and customization options. Our team will provide a fast quotation and professional support within 24 hours.
EPA Certified Kubota Engine Factory Direct Price
[ 4.9 ] 7 REVIEWS

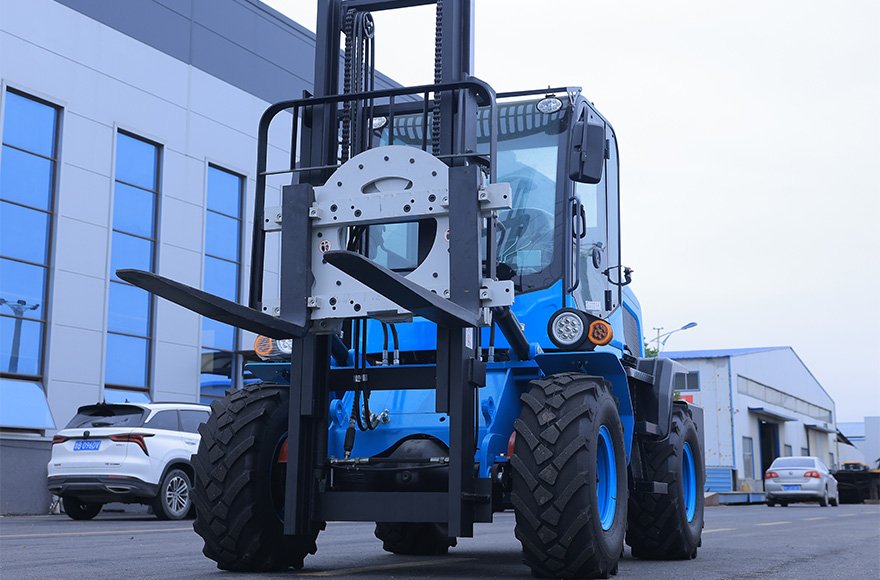

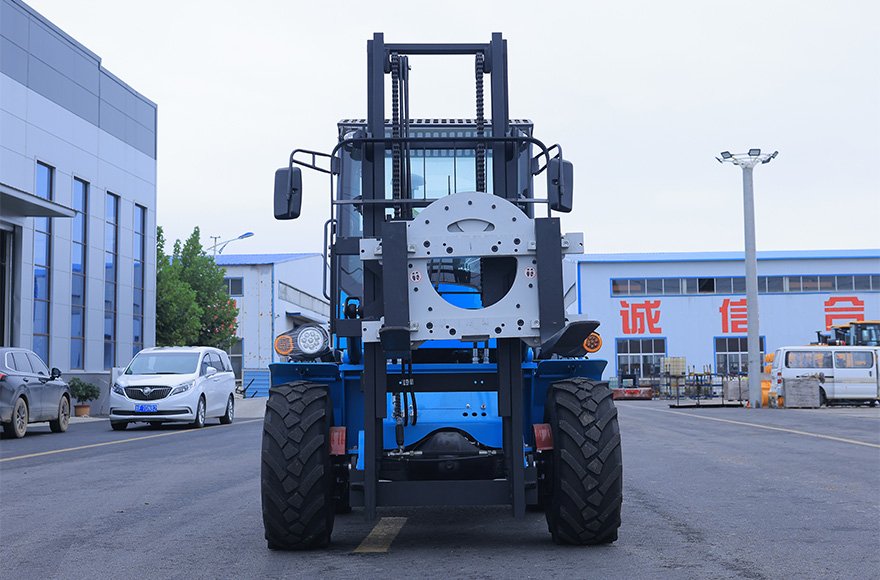

Unmatched Off-Road Maneuverability 4×4 All-Wheel Drive & 35° Gradeability: Delivers exceptional traction with a full-load traction force of 40 kN, conquering muddy, rocky, or sloped terrain without slipping, and climbing steep inclines with ease. Front-Articulated Steering: A minimum turning radius of just 3,300 mm enables precise control in confined spaces, while the hydraulic power steering system ensures effortless operation even under maximum load. Rugged Drivetrain: Equipped with cast steel wheel-side drive axles and 20.5-70-16 heavy-duty tires, it offers superior ground clearance and durability to withstand rough terrain impacts.
Flexible Lifting & Load Stability Adjustable Load & Lift Range: Supports a 3,000–5,000 kg maximum load capacity and customizable lifting heights (3–6 meters), adapting to diverse material handling needs. Reinforced Load Handling: Features a 600 mm load center distance, 1,220 mm forged fork, and 12° forward / 6° backward tilt, ensuring secure load retention and precise placement. Precise Hydraulic System: The robust hydraulic system enables smooth, responsive control of lifting, tilting, and fork movements, guaranteeing accurate load handling.
Reliable Power & Safe Operation Efficient Powertrain: Powered by a Quanchai 490 turbocharged engine (55 kW) paired with a Jinlite 265 torque converter transmission, it delivers strong torque and a top speed of 35 km/h, balancing power and fuel efficiency. Dual Safety Braking: Combines manual and air braking systems for responsive, reliable stopping power, enhancing safety across all working conditions. Intuitive Operator Interface: A 24V electrical system, full lighting/signal suite (headlights, turn signals, brake lights, reverse horn), and LCD dashboard provide clear visibility and real-time operational data.
Construction Sites: Transports steel beams, concrete blocks, and heavy machinery across muddy, uneven job sites.
Technical Parameters
| Length × Width × Height (mm) | 3700 × 1850 × 2500 | Lighting & Signals | Headlight, turn signal, brake light, reverse horn |
| Maximum Lifting Weight (kg) | 3000–5000 | Dashboard | LCD display |
| Rated Lift Height (m) | 3–6 | Drive Axle | Cast steel wheel-side axle |
| Load Center Distance (mm) | 600 | Tire Model | 20.5-70-16 |
| Minimum Turning Radius (mm) | 3300 | Steering Type | Front articulated |
| Max. Traction Force at Full Load (kN) | 40 | Braking Method | Manual brake + pneumatic brake |
| Operating Weight (kg) | 4600 | Fork Length (mm) | 1220mm standard fork |
| Gradeability (°) | 35 | Steering Mode | Hydraulic power steering |
| Forward/Backward Tilt Angle (°) | 12 / 6 | Drive Mode | Four-wheel drive |
| Voltage (V) | 24 | Operator Cab | Fully enclosed luxury cab |
| Transmission | Jinlite 265 torque converter | Engine Model | Quanchai 490 turbocharged |
| Travel Speed (km/h) | 35 | Power (kW) | 55 |
This hybrid forklift adopts dual power design for low consumption and low noise. Sensitive hydraulic control ensures stable lifting, ideal for high-frequency material handling in warehouses and logistics yards.
Power : 42KW
Load Capacity : 3500KG
Weight : 4520KG
Specifications : 2852x1234x2186mm
Equipped with high-density lithium battery, this forklift supports fast charging and long service time. Zero emission and quiet operation make it perfect for indoor workshops, cold storage and closed working areas.
Power : 76.8KW
Load Capacity : 5000KG
Weight : 3650KG
Specifications : 3180x1458x2408mm
With mature battery configuration and low maintenance cost, this forklift features stable running and high cost performance. Simple operation meets daily cargo stacking and short-distance factory transportation.
Power : 72KW
Load Capacity : 2500KG
Weight : 3150KG
Specifications : 2350x1170x2170mm
One-piece reinforced body improves overall durability and compression resistance. Strong 4WD traction and anti-slip tires deliver outstanding trafficability for muddy farms, gravel and uneven outdoor sites.
Power : 55KW
Load Capacity : 5000KG
Weight : 4800KG
Specifications : 2760x1220x2100mm
Heavy 6.0 ton load capacity with four-wheel drive power output. Rear articulated steering realizes flexible turning, suitable for heavy-duty handling on construction sites and complex rugged terrain.
Power : 76KW
Load Capacity : 6000KG
Weight : 6550KG
Specifications : 3950x2500x2640mm
Compact 3.5 ton body with front articulated structure and flexible steering. Four-wheel drive provides strong adhesion, stably adapting to slopes, farmland and various harsh road conditions.
Power : 37KW
Load Capacity : 3500KG
Weight : 4350KG
Specifications : 3850x1800x2500mm
Optimized rear steering design with powerful 4WD performance. Reinforced chassis and wear-resistant tires ensure stable driving in muddy fields, bumpy roads and all outdoor complex scenarios.
Power : 37KW
Load Capacity : 3500KG
Weight : 4450KG
Specifications : 3700x1800x2450mm
High-torque engine provides steady power output. Balanced flexibility and load capacity, this off-road forklift is widely used in farm orchards, municipal engineering and outdoor cargo handling.
Power : 37KW
Load Capacity : 3500KG
Weight : 4450KG
Specifications : 3700x1800x2450mm
Lightweight 2.5 ton design with ultra-small turning radius. Flexible and compact structure, easily coping with narrow orchards, greenhouses and limited small-scale operation spaces.
Power : 37KW
Load Capacity : 2500KG
Weight : 3150KG
Specifications : 3200x1600x2400mm
Heavy-duty 7 ton grade with thickened body and upgraded hydraulic system. High-power engine supports long-time heavy load work, for large construction and bulk material transportation.
Power : 85KW
Load Capacity : 7000KG
Weight : 8500KG
Specifications : 5200x2200x3000mm
Exclusive rear steering structure enhances flexibility in narrow areas. Shock-absorbing chassis and off-road tires guarantee safe and efficient operation on rugged and undulating ground.
Power : 55KW
Load Capacity : 3500KG
Weight : 4800KG
Specifications : 3750x1800x2250mm
