HC25 Mini Skid Steer Loader Factory

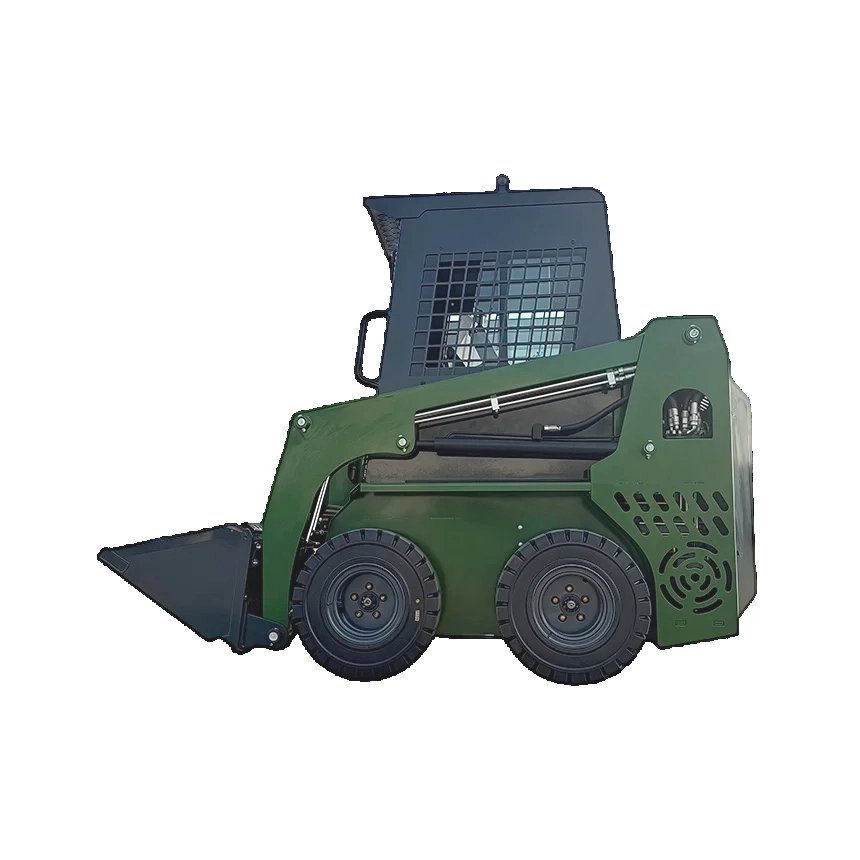

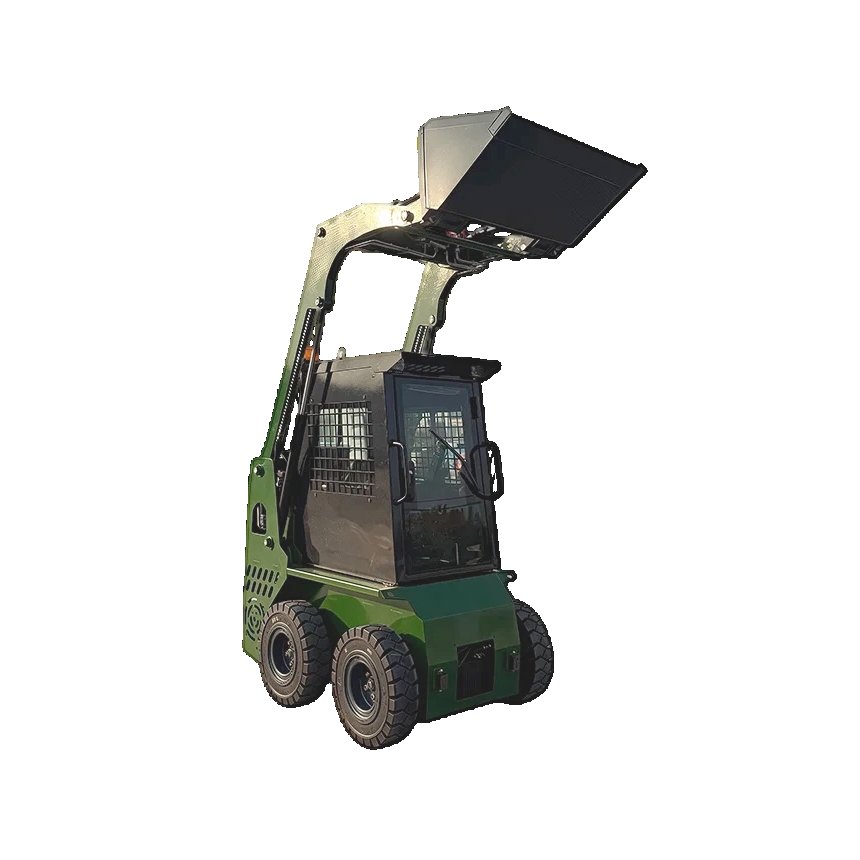

Skid Steer Loader HC25

The Skid Steer Loader HC25 is a powerful and compact machine designed for construction, agriculture, landscaping and material handling applications. Featuring a 380kg rated load capacity, multiple engine configurations and excellent maneuverability, it delivers reliable performance in confined working environments. Compatible with various attachments, the HC25 provides a flexible solution for digging, loading, trenching and site maintenance tasks.The mini HC25 skid steer loader is perfect for small construction and farm jobs. It is compact, easy to operate and supports various attachments for multi-scene use.

Mini Loader

Skid Steer Loader HC25

Looking for a reliable mini skid steer loader factory for OEM or wholesale cooperation? The Skid Steer Loader HC25 combines compact dimensions, powerful lifting performance and multi-attachment versatility to meet diverse project requirements. Contact us today for factory-direct quotations, product catalogs, customization services and international distribution opportunities.Strong working ability: excavators of different models has excellent excavation capacity and carrying capacity, which can easily cope with a variety of complex site environment and construction requirements.

EPA Certified Kubota Engine Factory Direct Price

[ 4.9 ] 11 REVIEWS

Minimum Order Quantity: 5

Get Best Price Add To Card

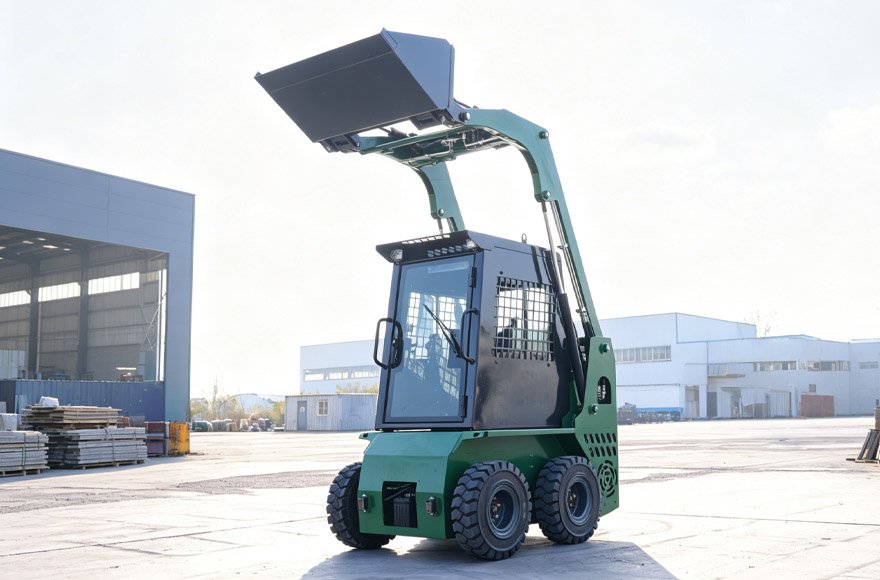

Overview and Introduction

High efficiency: Equipped with advanced hydraulic system and power system, to provide stable and smooth mining operation, improve work efficiency and effectively reduce energy consumption.

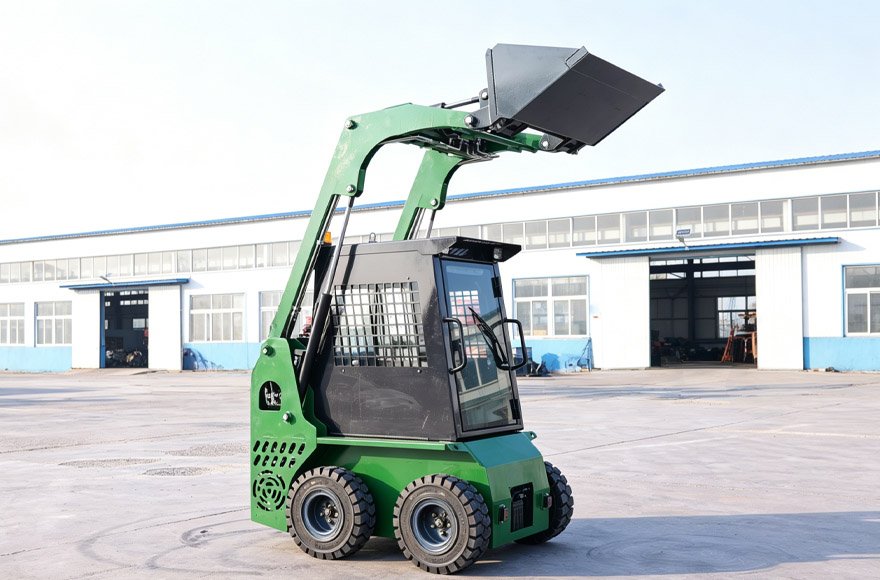

Advantages and Features

High-precision control system: It has precise control functions and a variety of working modes, which can be finely adjusted and controlled according to different construction needs to improve construction accuracy and effect.

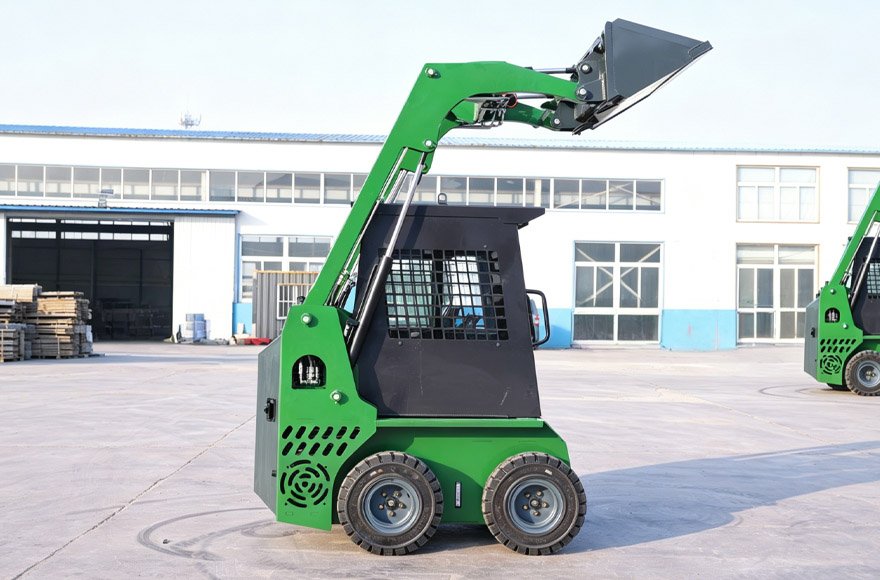

Details and Advantages

Safe and reliable: with a number of safety protection devices, such as tilt warning device, collision warning device, etc., to provide a full range of safety protection, effectively reduce the risk of accidents.

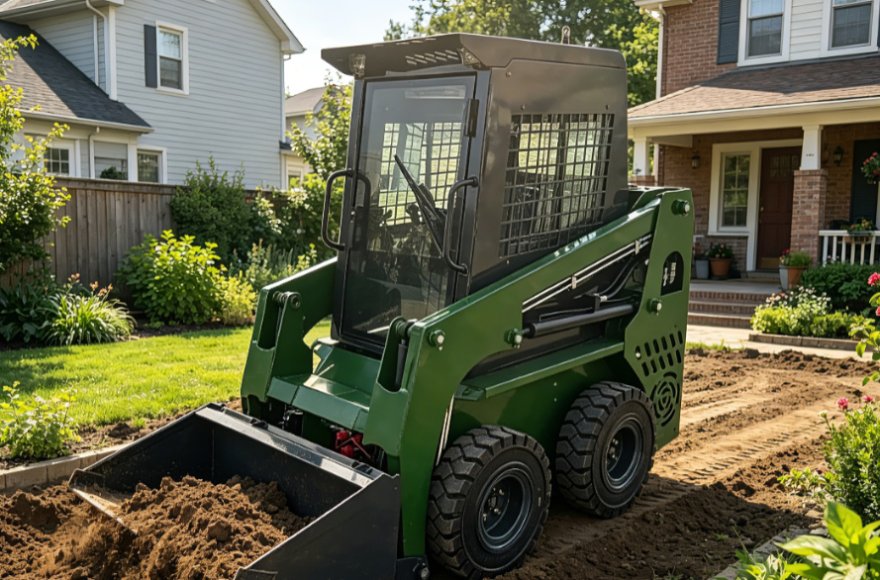

Functions and Applications

The cab design of the loader is comfortable, equipped with air conditioning, hanging seats and other facilities, providing a good working environment.

PRODUCT PARAMETER

Technical Parameters

Model	LW25	Max Operating Height	3050 mm
Engine Options	Kubota D1105 / Laidong 385 / RATO R999D	Height to Bucket Pin	2580 mm
Rated Power	14.2 kW / 29 kW / 24.5 kW	Overall Height	1940 mm
Standard Speed	2200 rpm / 2350 rpm / 3600 rpm	Max Height with Bucket Level	2625 mm
Cylinders	3 / 3 / 2	Length without Attachments	2060 mm
Aspiration	Natural	Length with Standard Bucket	2570 mm
Displacement	1105 / 1500 / 999 cc	Max Dump Angle at Height	23°
Emission Standard	Euro V / EPA Tier 4	Dump Height	2150 mm
Rated Load Capacity	380 kg	Dump Reach	560 mm
Max Load Capacity		Ground Bucket Rollback Angle	33°
Max Breakout Force		Max Bucket Rollback Angle at Height	45°
Travel Speed	9 km/h	Bucket Volume	0.12 m³
Three-phase Cycle Time	12.58 s	Operating Weight	1450 kg
Hydraulic System Pressure
Fuel Tank Capacity	47 L

CUSTOMER QUESTIONS & ANSWERS

How do I place an order?

What documents do you provide for export?

Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Do you provide after-sales service overseas?

Yes, we have partnered service centers in key regions.

What's the lead time for orders?

Standard models ship in 15–30 days; customized units require 30–45 days.

Rating:*

Skid Steer Loader HC360

This crawler skid steer loader offers excellent traction on soft ground. Ideal for muddy sites and farms, it ensures stable performance and high working efficiency.

Power : 11KW

Load Capacity : 300KG

Weight : 1020KG

Specifications : 2370x1000x1390mm

Skid Steer Loader HC320

Compact and efficient, the HC320 works well in confined spaces. With strong power and flexible control, it is widely used for loading, digging and material handling.

Power : 10.2KW

Load Capacity : 300KG

Weight : 630KG

Specifications : 2160x1000x1390mm

Skid Steer Loader HC20W

This wheel skid steer loader is highly maneuverable and efficient. Suitable for urban construction and farms, it ensures smooth movement and stable performance.

Power : 20KW

Load Capacity : 200KG

Weight : 860KG

Specifications : 2242x1154x1265mm

Skid Steer Loader HC20R

Powered by a diesel engine, the HC20R ensures strong power and low fuel use. It offers high efficiency for loading, digging and cleaning in construction and farms.

Power : 18.5KW

Load Capacity : 200KG

Weight : 1105KG

Specifications : 2620x1050x1330mm

Skid Steer Loader HC10R

Compact and flexible, the Wheel Loader HC948 skid steer loader works well in narrow spaces. It supports multiple attachments and is ideal for construction, farms and landscaping.

Power : 7.6KW

Load Capacity : 100KG

Weight : 700KG

Specifications : 2307x920x1290mm
