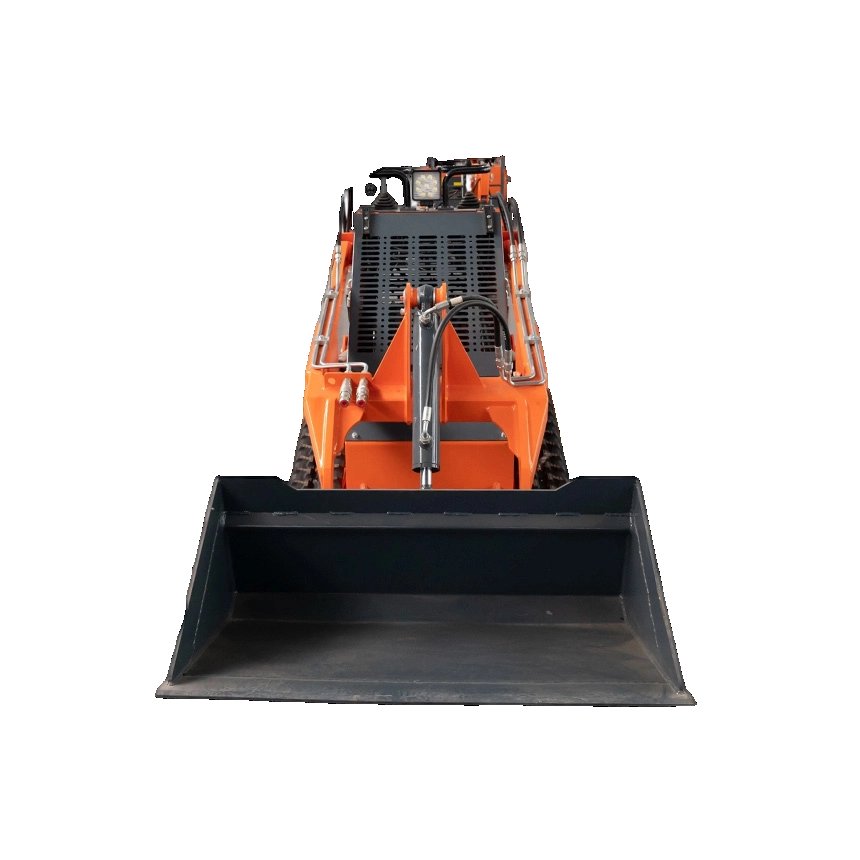

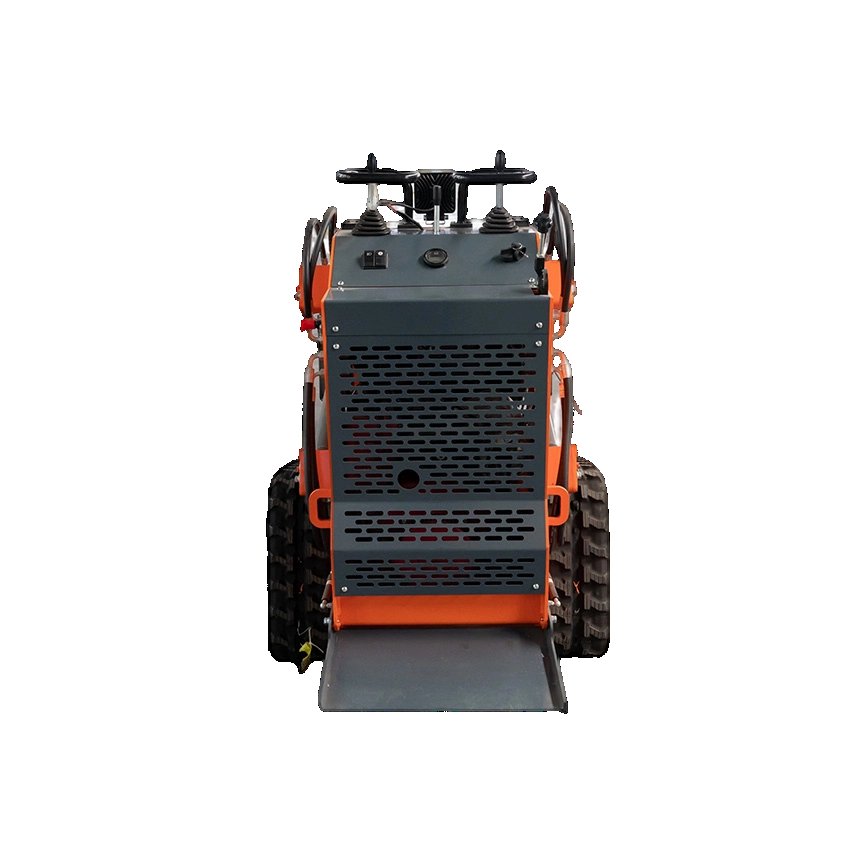

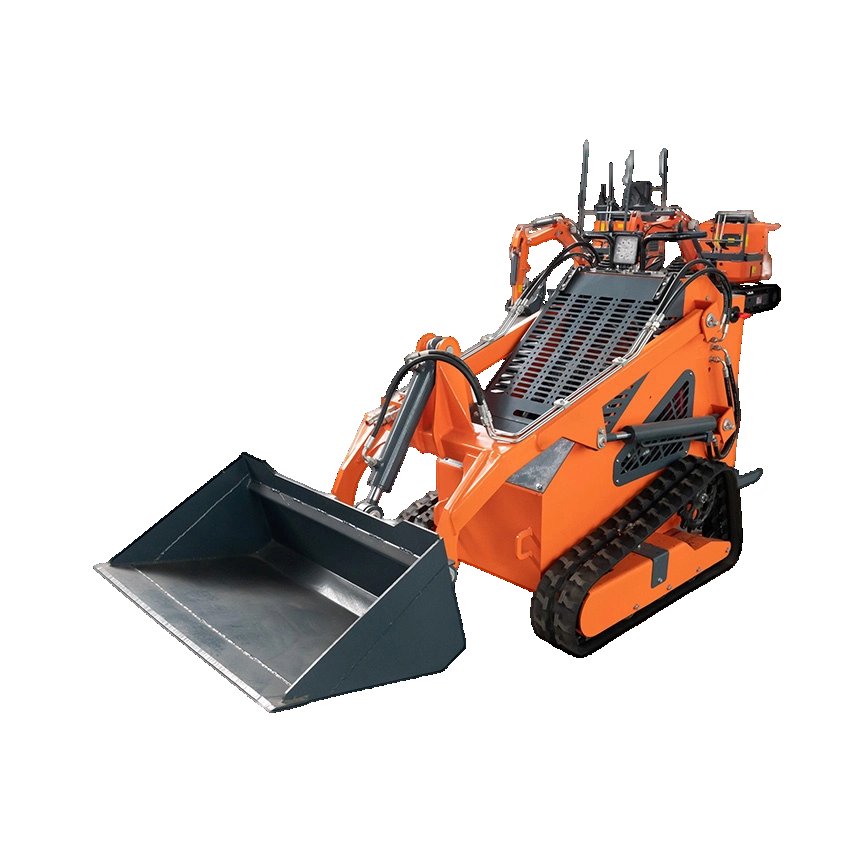

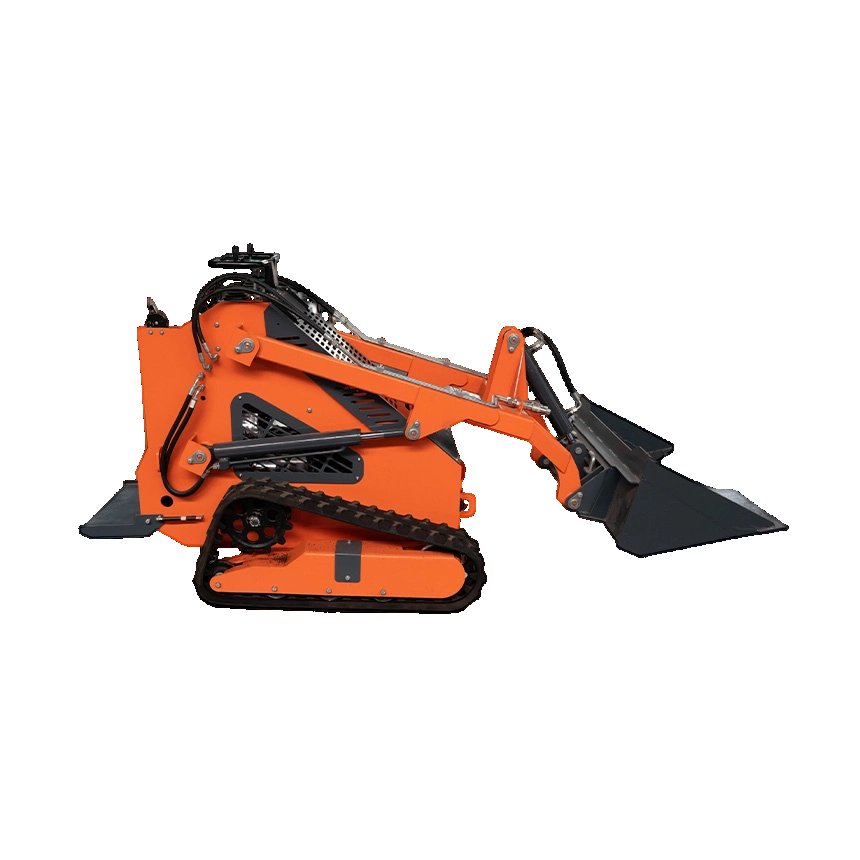

HC10R Skid Steer Loader

Skid Steer Loader HC10R

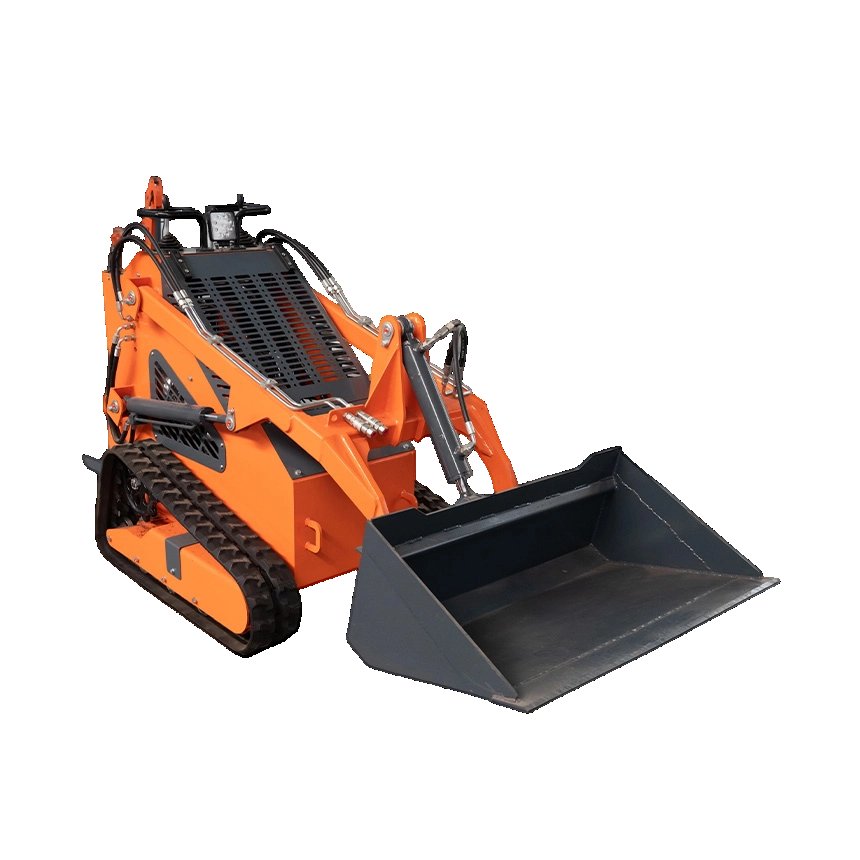

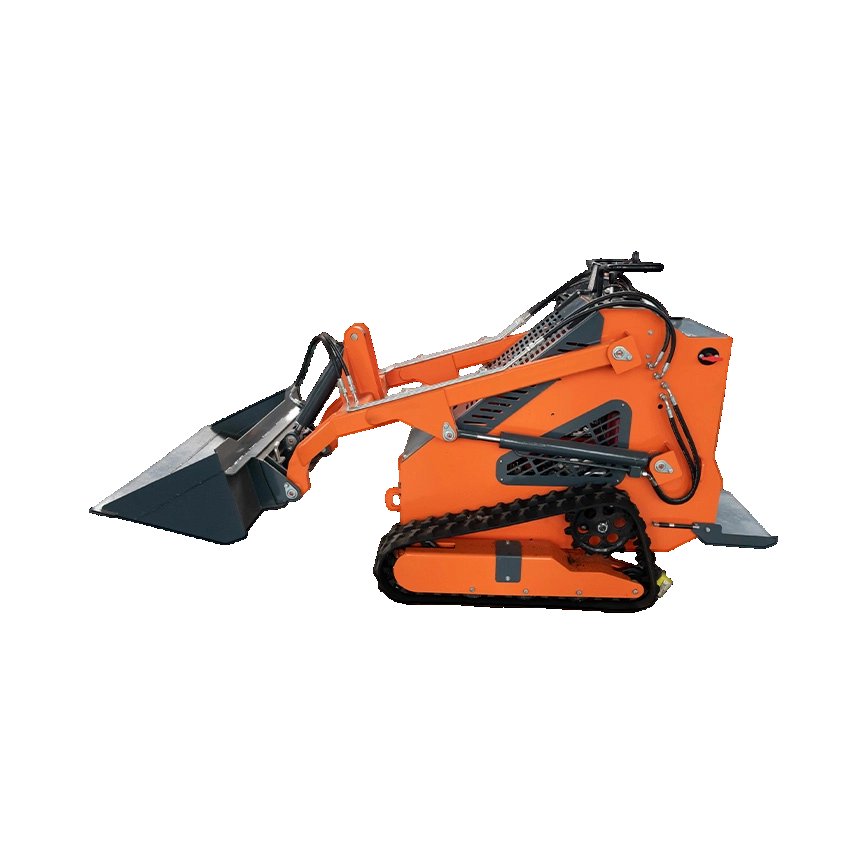

The Wheel Loader Skid Steer Loader HC10R Skid Steer Loader is a compact tracked machine designed for efficient operation in narrow and confined spaces. Equipped with a reliable diesel engine, high-strength rubber tracks and flexible steering performance, it is ideal for construction, landscaping, agriculture and general material handling applications.Compact and flexible, the HC10R skid steer loader works well in narrow spaces. It supports multiple attachments and is ideal for construction, farms and landscaping.

Mini Loader

Skid Steer Loader HC10R

Interested in learning more about the Skid Steer Loader HC10R Skid Steer Loader? Contact our team today for detailed specifications, customization options and project recommendations. We will help you find the most suitable solution for your application requirements.
Mini Loaders are mainly applicable to earthwork operation scenarios in small and medium-sized construction projects, highways, railways, hydropower, ports, mines and other construction projects

EPA Certified Kubota Engine Factory Direct Price

[ 4.9 ] 32 REVIEWS

Minimum Order Quantity: 5

Get Best Price Add To Card

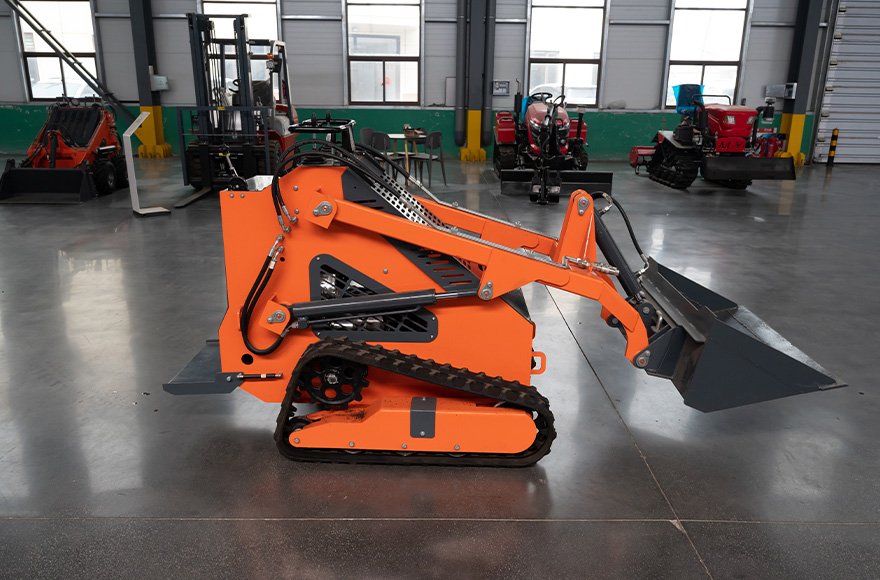

Overview and Introduction

Its unique steering mechanism relies on the difference in wheel speeds between the two sides of the vehicle, allowing it to maneuver easily in tight spaces and uneven terrain.

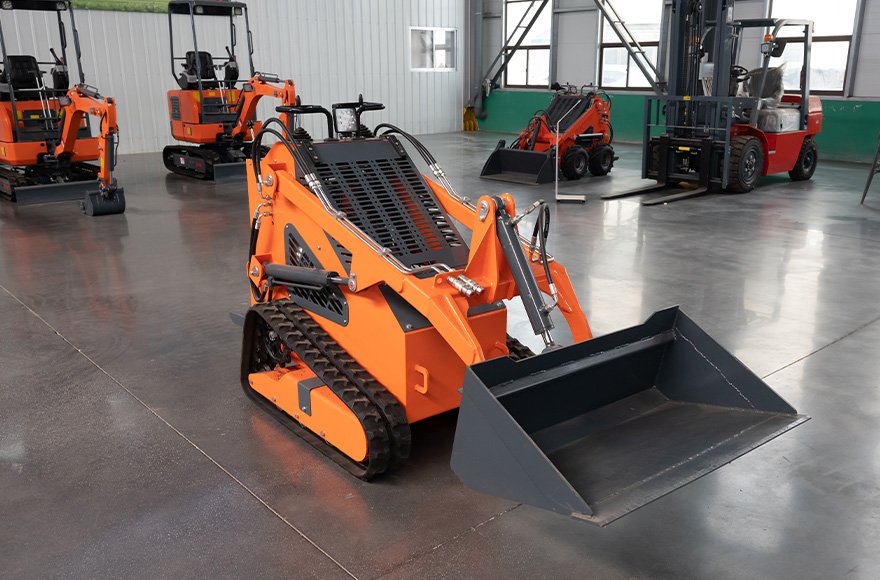

Advantages and Features

This combination of features makes it an excellent tool for projects that demand both strength and agility. Whether on a construction site, in agriculture, or landscaping, a Skid Steer Loader delivers the performance needed to get the job done efficiently.

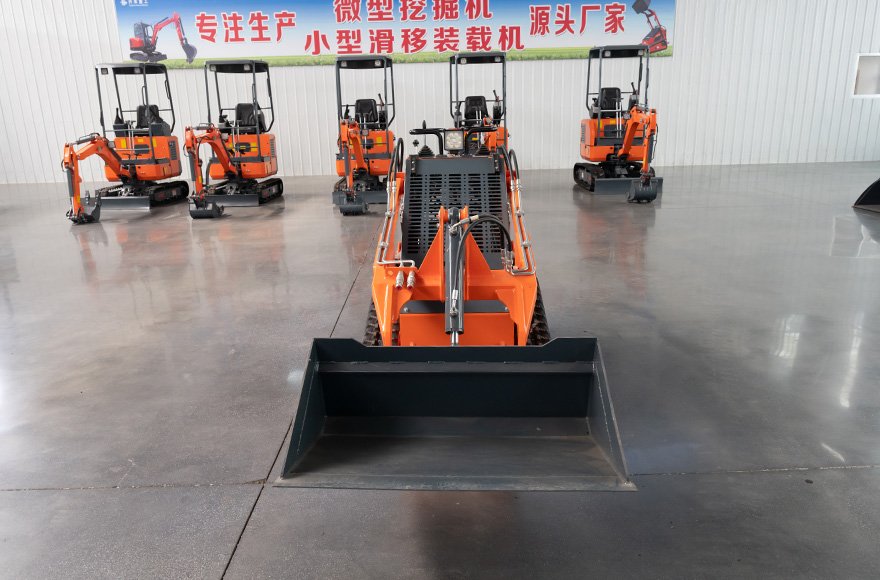

Details and Advantages

Driver's pedal:A standing pedal with strong load-bearing capacity.Crawler:High-strength rubber tracks, replaceable wheel type

Functions and Applications

The cab design of the loader is comfortable, equipped with air conditioning, hanging seats and other facilities, providing a good working environment.

PRODUCT PARAMETER

Technical Parameters

Operational Quality	700 kg	Departure Angle	21°
Overall Length	2307 mm	Engine Model	Changfa 195FD1
Overall Width	920 mm	Engine Parameters	7.6 kW / 3000 rpm
Overall Height	1290 mm	Hydraulic System Pressure	14 MPa
Chassis Width	920 mm	Main Pump Displacement	06+06 mL/r
Standard Bucket Width	1000 mm	Loading Capacity	100 kg
Maximum Working Height	2734 mm	Bucket Capacity	0.1 m³
Maximum Unloading Height	1584 mm	Maximum Lifting Force	200 kg
Maximum Unloading Distance	560 mm	Driving Speed	0–2.5 km/h
Bucket Unloading Angle	30°	Track Length	1380 mm
Collecting Angle	30°

CUSTOMER QUESTIONS & ANSWERS

How do I place an order?

What documents do you provide for export?

Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Do you provide after-sales service overseas?

Yes, we have partnered service centers in key regions.

What's the lead time for orders?

Standard models ship in 15–30 days; customized units require 30–45 days.
