HC20R Skid Steer Loader for Sale

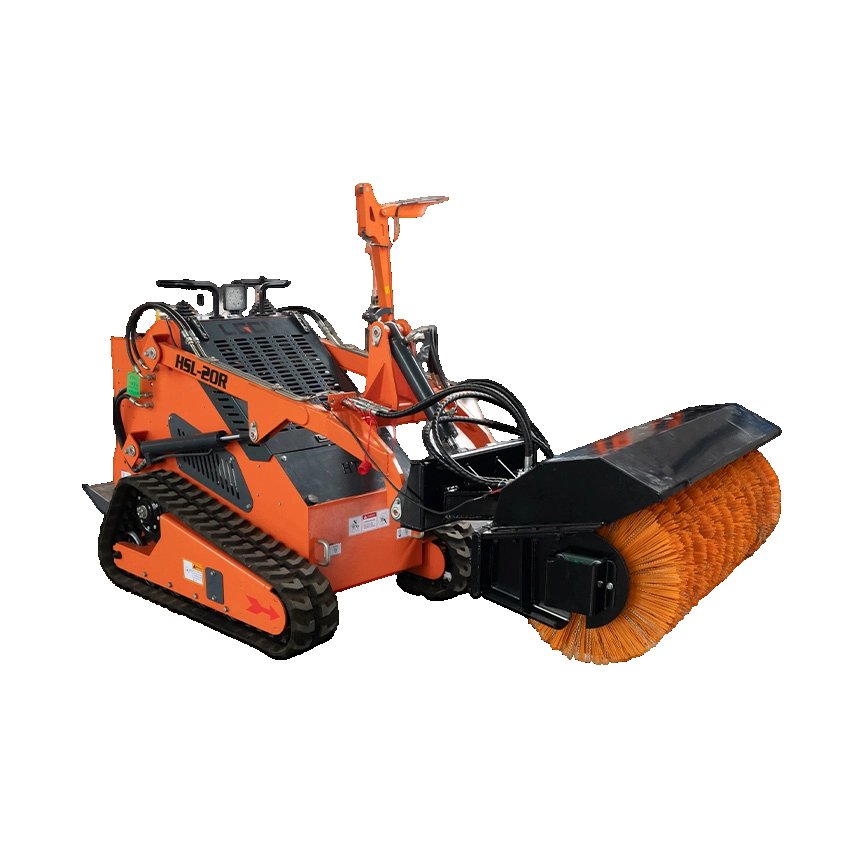

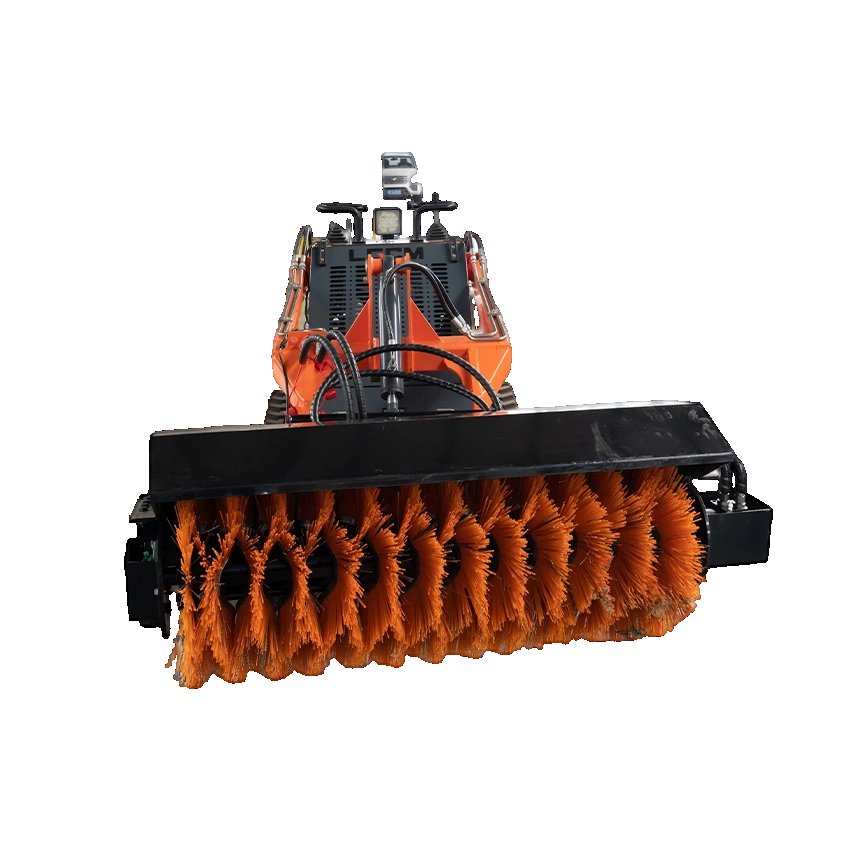

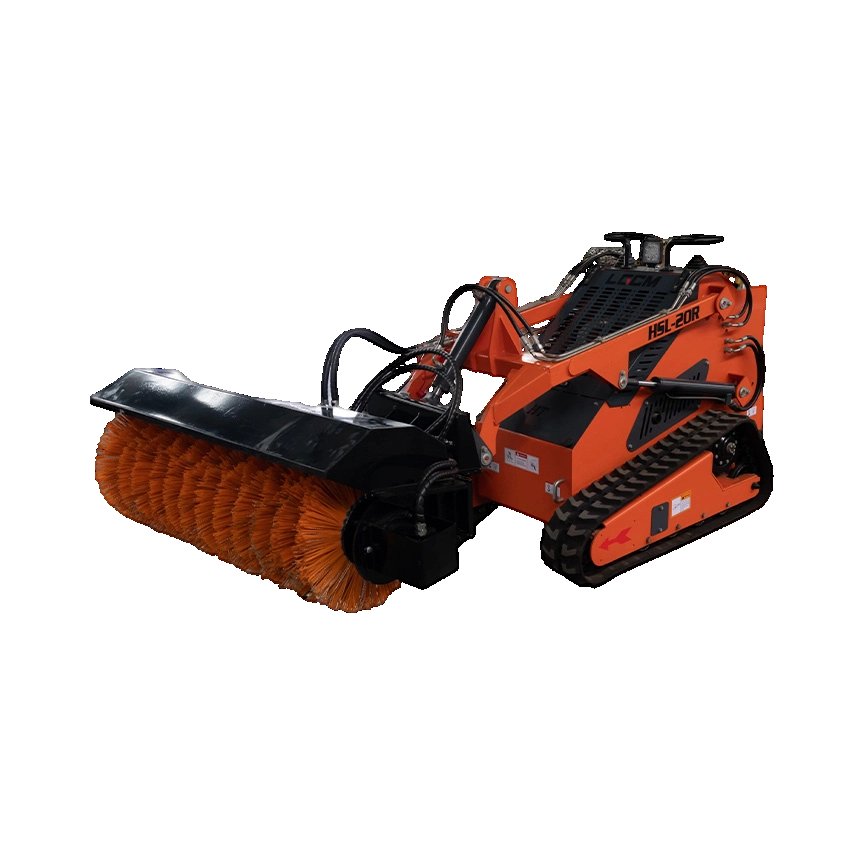

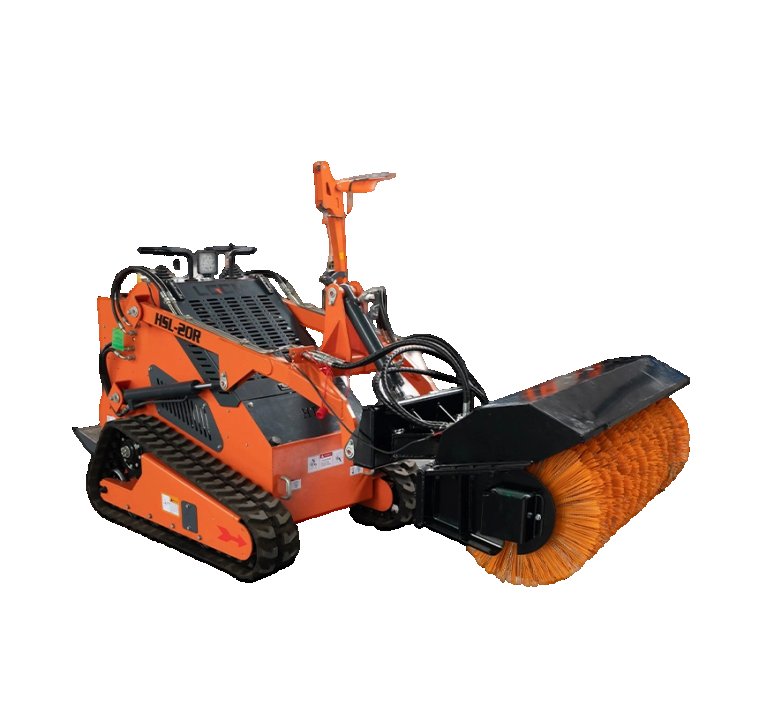

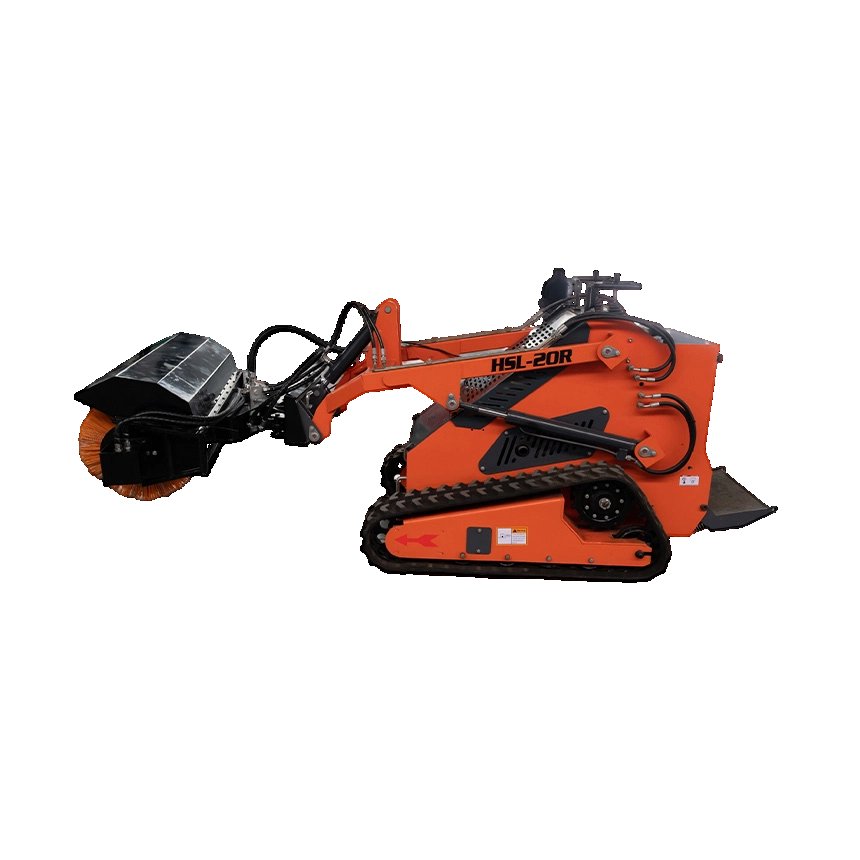

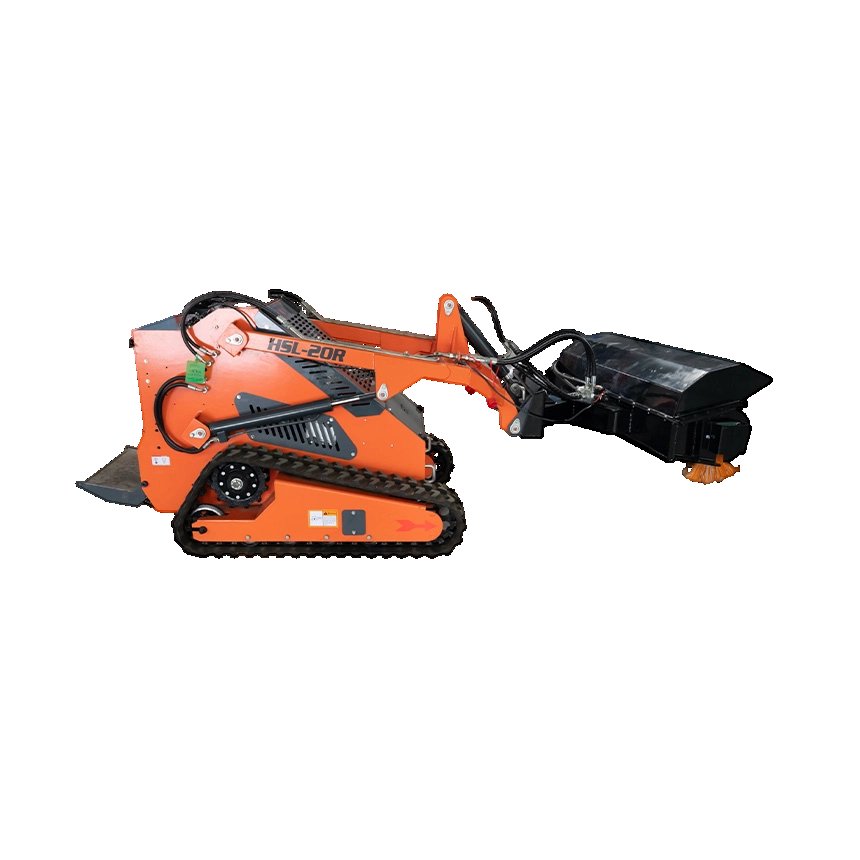

Skid Steer Loader HC20R

The HC20R Skid Steer Loader is a compact and versatile machine designed for construction, agriculture, landscaping and material handling applications. Powered by a reliable diesel engine, it delivers strong performance, excellent maneuverability and efficient operation in confined working environments.Powered by a diesel engine, the HC20R ensures strong power and low fuel use. It offers high efficiency for loading, digging and cleaning in construction and farms.

Mini Loader

Skid Steer Loader HC20R

Looking for a reliable compact skid steer loader for sale? The HC20R combines powerful diesel performance, easy operation and low operating costs, making it an ideal choice for contractors, farms, rental fleets and construction companies. Contact us today to request specifications, pricing and bulk order solutions.
Mini Loaders are mainly applicable to earthwork operation scenarios in small and medium-sized construction projects, highways, railways, hydropower, ports, mines and other construction projects

EPA Certified Kubota Engine Factory Direct Price

[ 4.9 ] 26 REVIEWS

Minimum Order Quantity: 5

Get Best Price Add To Card

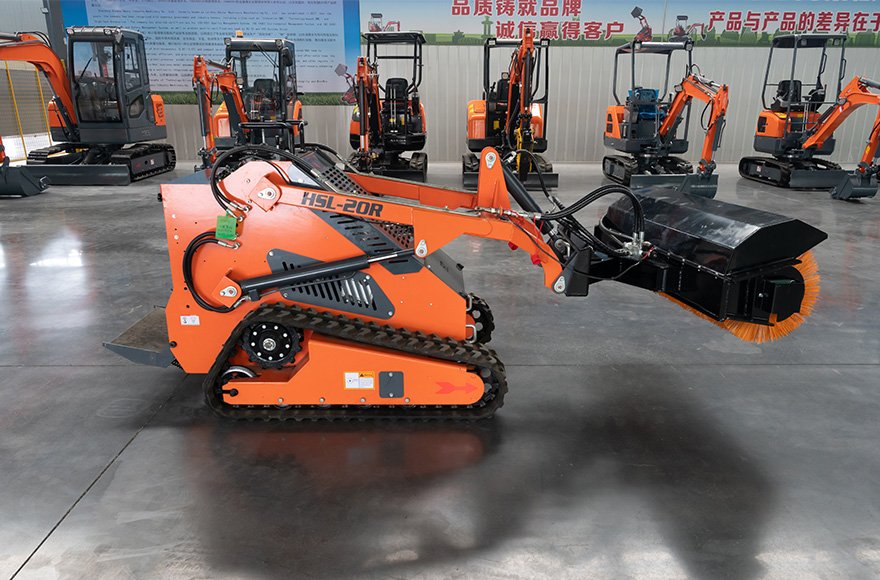

Overview and Introduction

A Compact Skid Steer Loader, also known as a skid loader or multi-function engineering machine, is a versatile and powerful piece of equipment designed for a wide range of tasks, particularly in confined or challenging work environments. Its unique steering mechanism relies on the difference in wheel speeds between the two sides of the vehicle, allowing it to maneuver easily in tight spaces and uneven terrain.

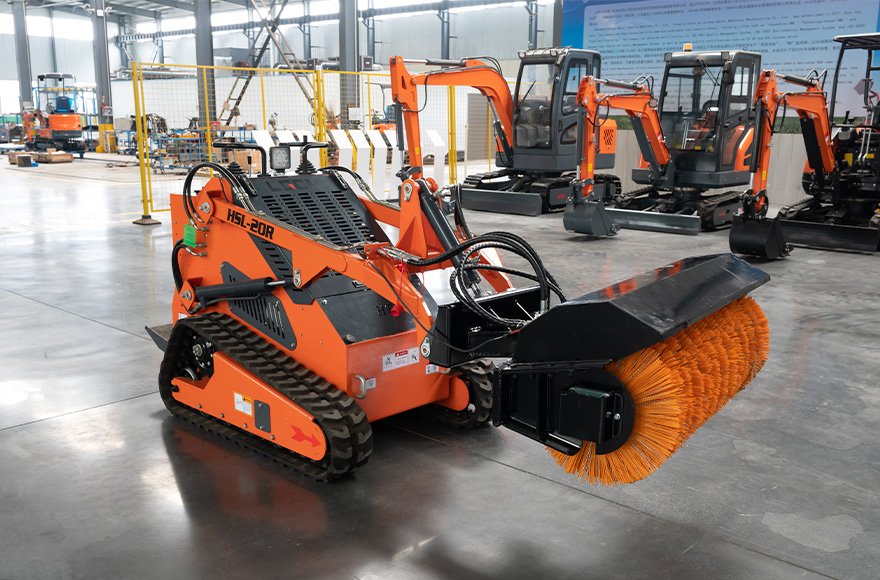

Advantages and Features

Whether on a construction site, in agriculture, or landscaping, a Skid Steer Loader delivers the performance needed to get the job done efficiently.

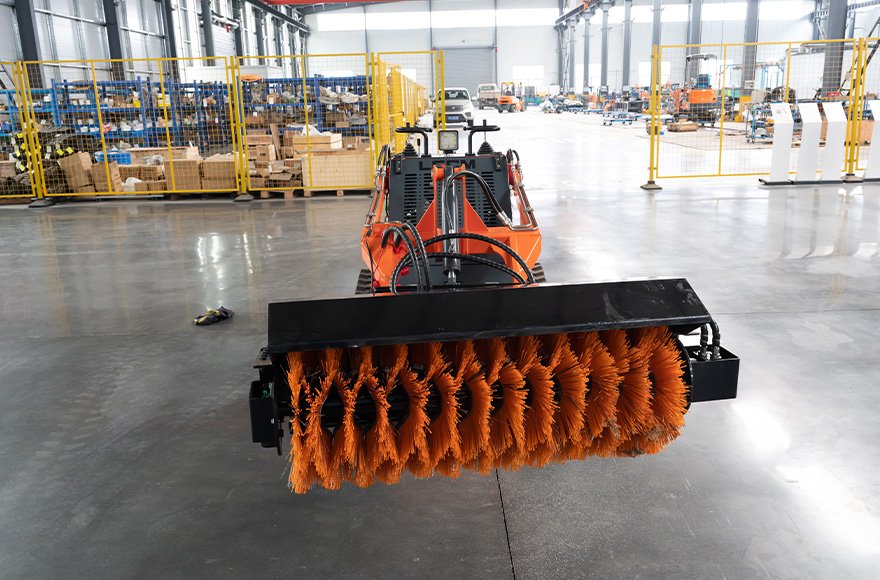

Details and Advantages

Driver's pedal:A standing pedal with strong load-bearing capacity.Crawler:High-strength rubber tracks, replaceable wheel type

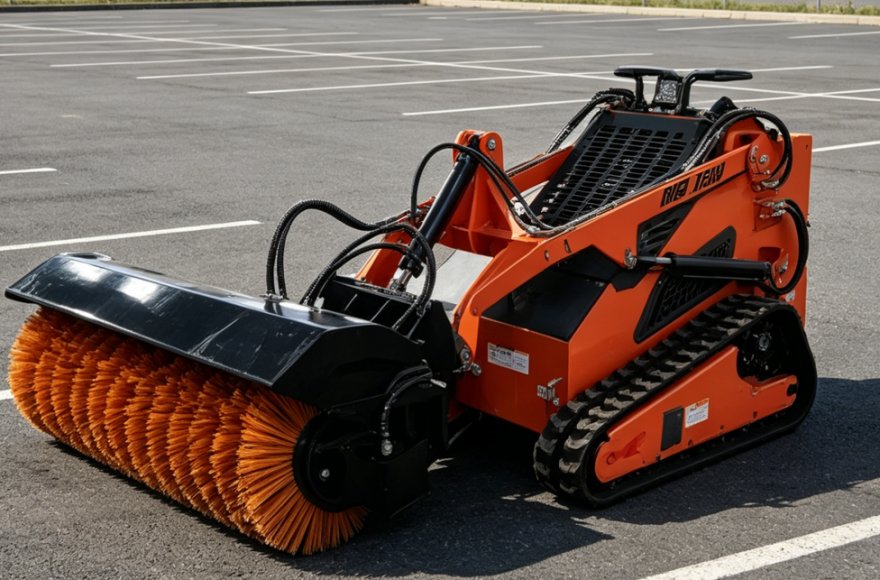

Functions and Applications

The cab design of the loader is comfortable, equipped with air conditioning, hanging seats and other facilities, providing a good working environment.

PRODUCT PARAMETER

Technical Parameters

Operational quality	1105 kg	Departure angle	11°
Overall length	2620 mm	Engine model	Xinchai 3B11X51P222
Overall width	1050 mm	Engine parameters	18.5 kW / 3000 rpm
Overall height	1330 mm	Hydraulic system pressure	17 MPa
Chassis width	1050 mm	Main pump displacement	12+12 mL/r
Standard bucket width	1160 mm	Loading capacity	200 kg
Maximum working height	2340 mm	Bucket capacity	0.15 m³
Maximum unloading height	1550 mm	Maximum lifting force	395 kg
Maximum unloading distance	350 mm	Driving speed	0–5 km/h
Bucket unloading angle	33°	Track length	1380 mm
Collecting angle	35°

CUSTOMER QUESTIONS & ANSWERS

How do I place an order?

What documents do you provide for export?

Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Do you provide after-sales service overseas?

Yes, we have partnered service centers in key regions.

What's the lead time for orders?

Standard models ship in 15–30 days; customized units require 30–45 days.

Rating:*

Skid Steer Loader HC360

This crawler skid steer loader offers excellent traction on soft ground. Ideal for muddy sites and farms, it ensures stable performance and high working efficiency.

Power : 11KW

Load Capacity : 300KG

Weight : 1020KG

Specifications : 2370x1000x1390mm

Skid Steer Loader HC320

Compact and efficient, the HC320 works well in confined spaces. With strong power and flexible control, it is widely used for loading, digging and material handling.

Power : 10.2KW

Load Capacity : 300KG

Weight : 630KG

Specifications : 2160x1000x1390mm

Skid Steer Loader HC25

The Skid Steer Loader HC25 is perfect for small construction and farm jobs. It is compact, easy to operate and supports various attachments for multi-scene use.

Power : 24.5KW

Load Capacity : 400KG

Weight : 1450KG

Specifications : 2060x1000x1940mm

Skid Steer Loader HC20W

This wheel skid steer loader is highly maneuverable and efficient. Suitable for urban construction and farms, it ensures smooth movement and stable performance.

Power : 20KW

Load Capacity : 200KG

Weight : 860KG

Specifications : 2242x1154x1265mm

Skid Steer Loader HC10R

Compact and flexible, the Wheel Loader HC948 skid steer loader works well in narrow spaces. It supports multiple attachments and is ideal for construction, farms and landscaping.

Power : 7.6KW

Load Capacity : 100KG

Weight : 700KG

Specifications : 2307x920x1290mm
