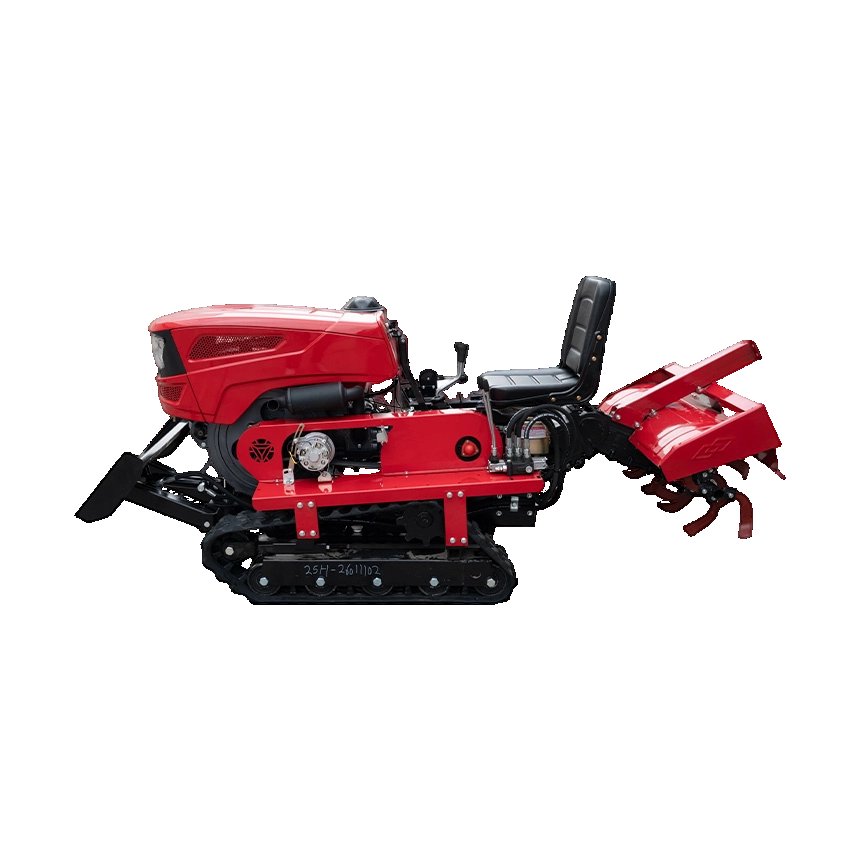

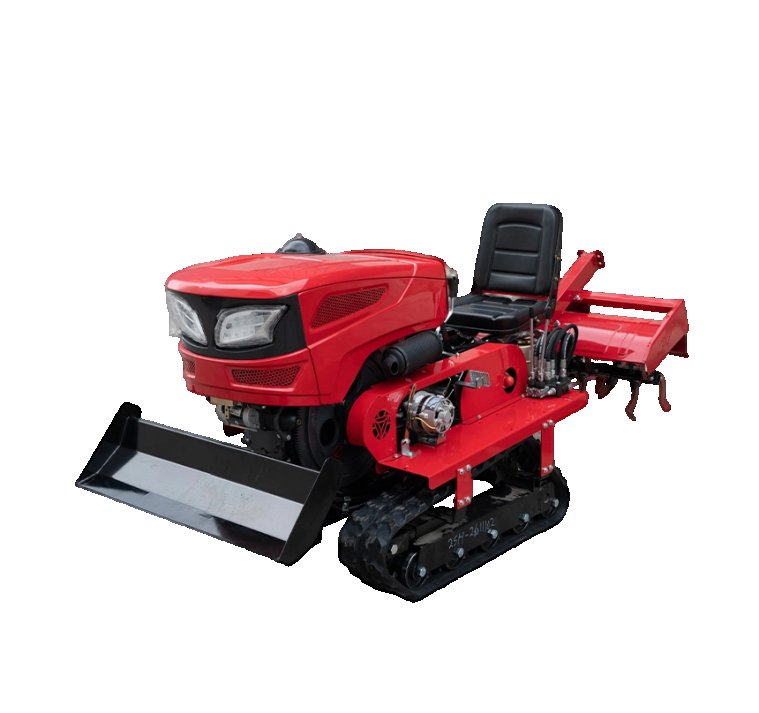

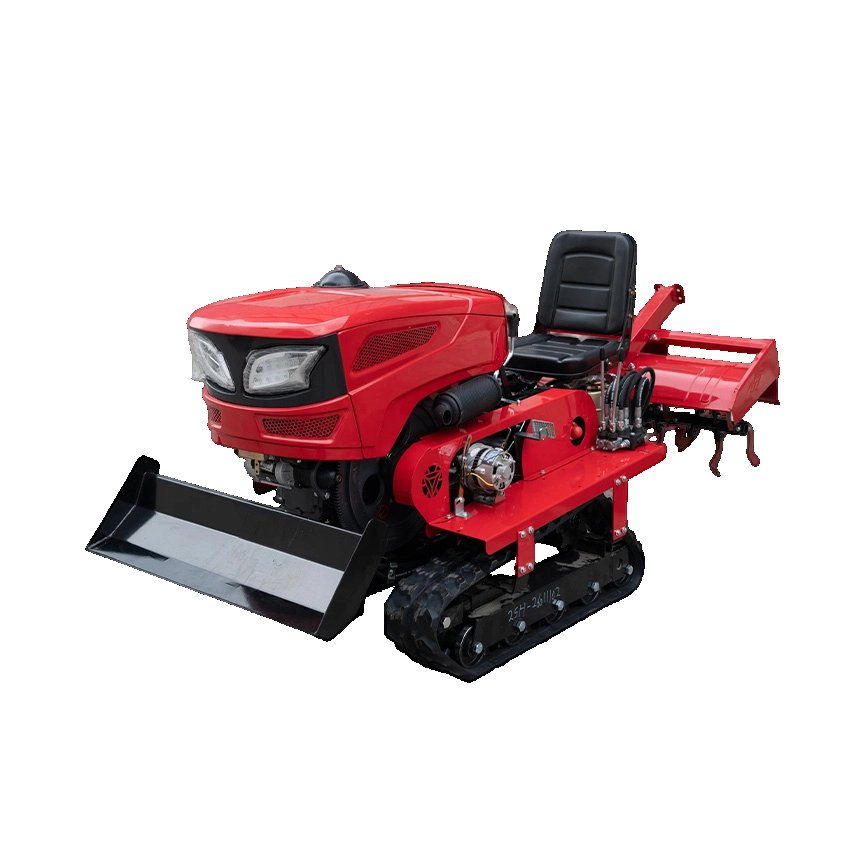

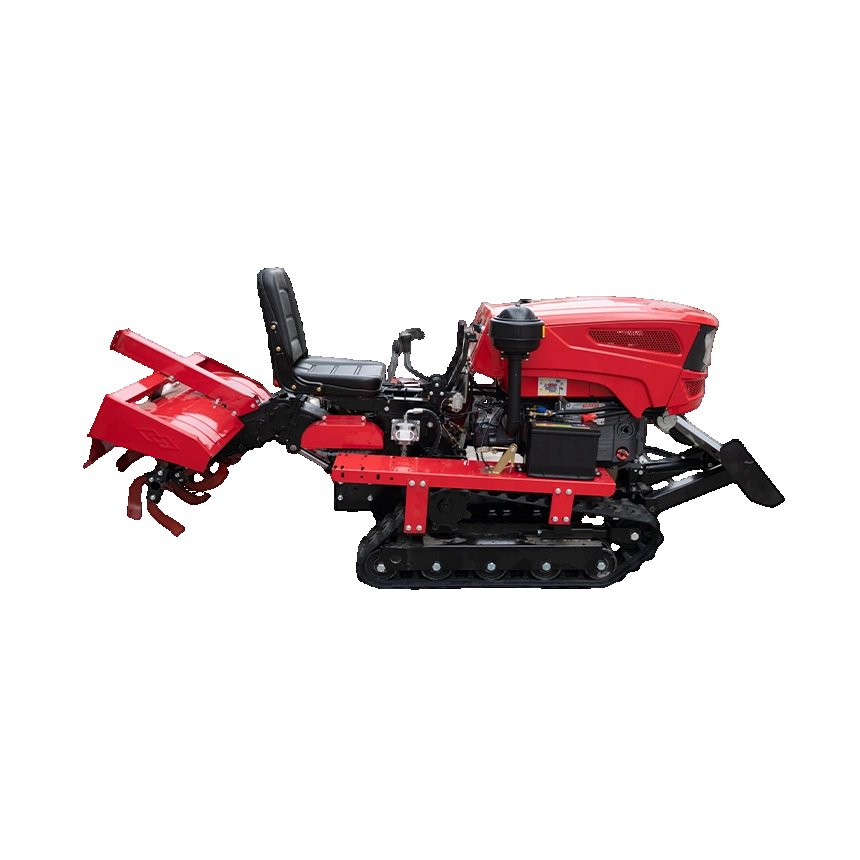

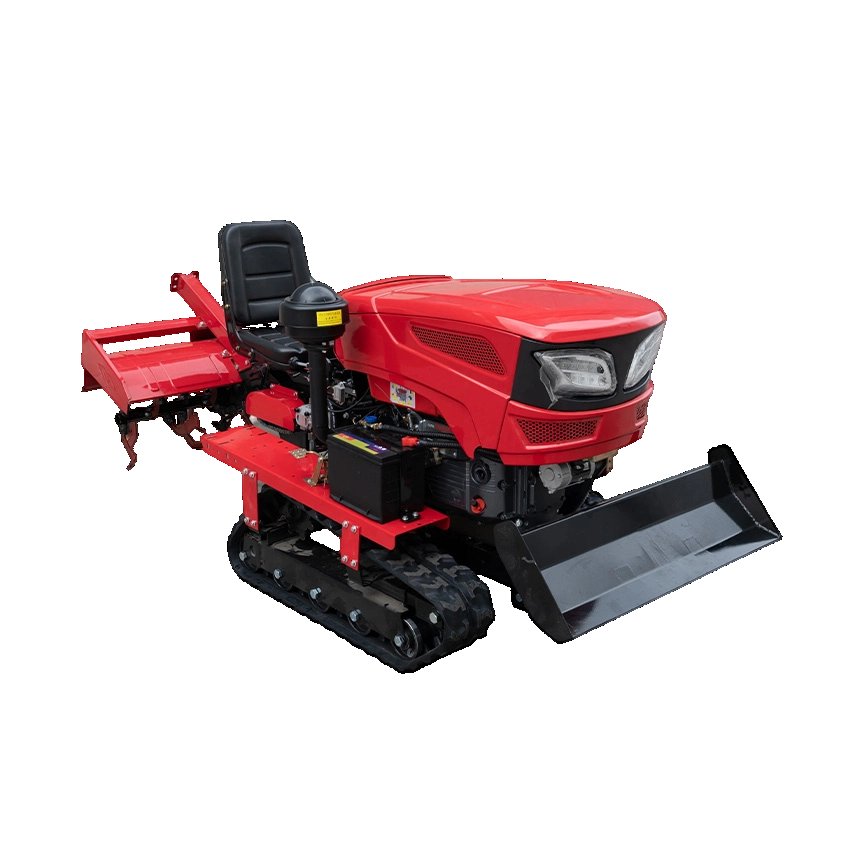

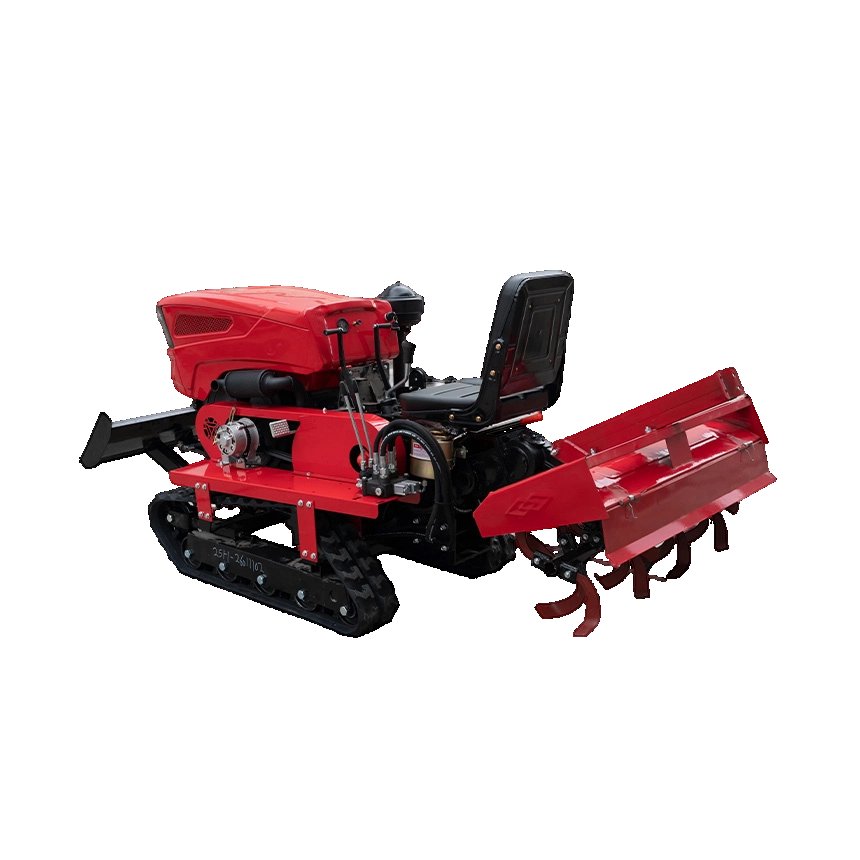

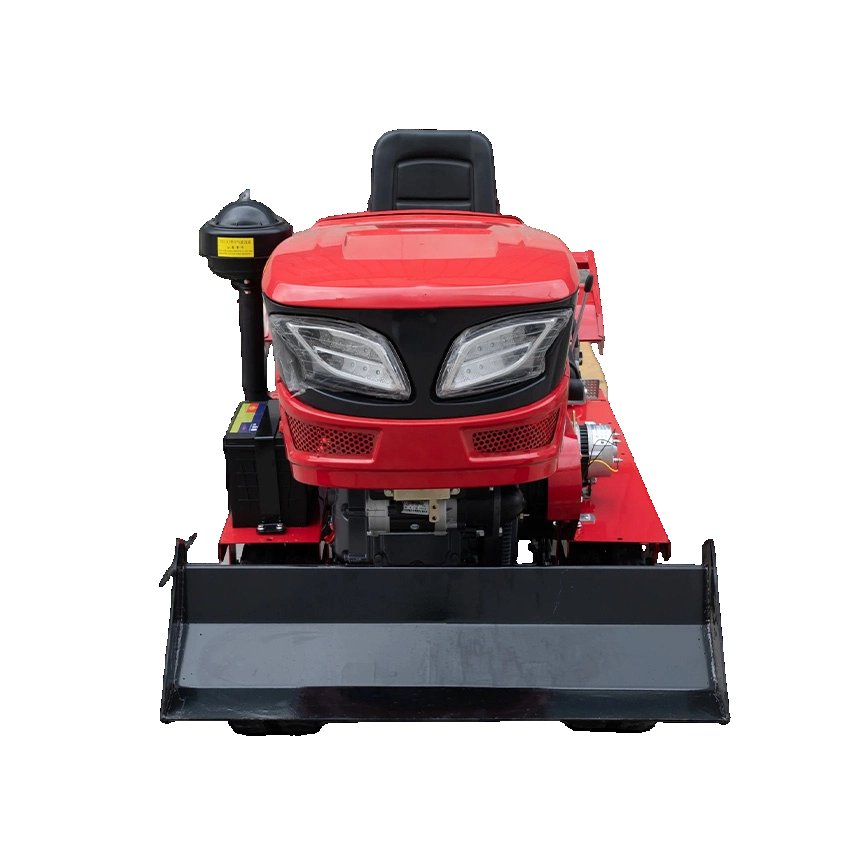

Crawler Tractor HC35H

The Crawler Tractor HC35H is a compact tracked crawler tractor built for efficient land preparation in orchards, gardens, and small-scale farms. With strong terrain adaptability, stable belt-driven transmission, and multi-functional implement compatibility, it performs well in both paddy fields and dry land conditions. Its low fuel consumption and flexible operation make it suitable for continuous daily agricultural work across different environments.

Crawler Tractor HC35H is designed for versatility, the machine supports rotary tilling, furrowing, weeding, backfilling, and dozing functions with quick implement switching, helping farmers improve productivity while reducing labor cost.

Crawler Tractor

Crawler Tractor HC35H

This advanced dual-purpose rotary tiller effortlessly transitions between paddy fields and dry land. With the capability to attach various agricultural implements, it caters to a wide range of farming requirements, ensuring optimal performance across different terrains.
Contact us today for technical details, FOB pricing, and export support. We provide professional solutions for agricultural machinery sourcing and can recommend the most suitable configuration based on your project requirements.

EPA Certified Kubota Engine Factory Direct Price

[ 4.9 ] 24 REVIEWS

Minimum Order Quantity: 5

Get Best Price Add To Card

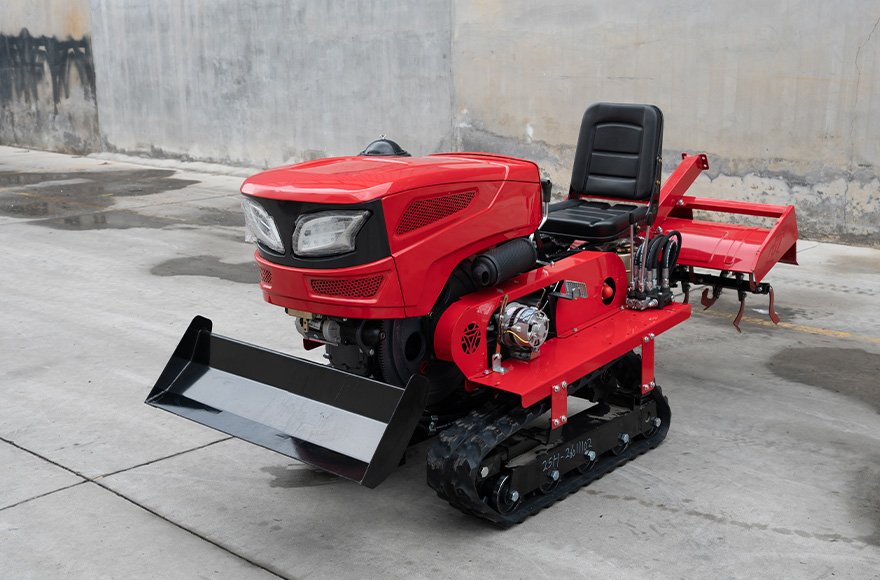

Overview and Introduction

Comprising mainly working parts, a robust frame, an efficient transmission system, and a power unit, this tiller employs belt transmission. This mechanism reduces strain on the power system, offering a certain level of engine protection. This versatile crawler tractor and rotary tiller combines robust agricultural performance with light construction capabilities, featuring a striking red chassis and integrated hydraulic excavator arm for multi-functional field operations. Designed for global markets, it offers fully customizable engine specifications and color schemes to meet specific regional requirements, making it an ideal compact solution for small farms, orchards, and landscaping projects requiring high maneuverability in tight spaces and varied terrains like muddy fields or slopes.

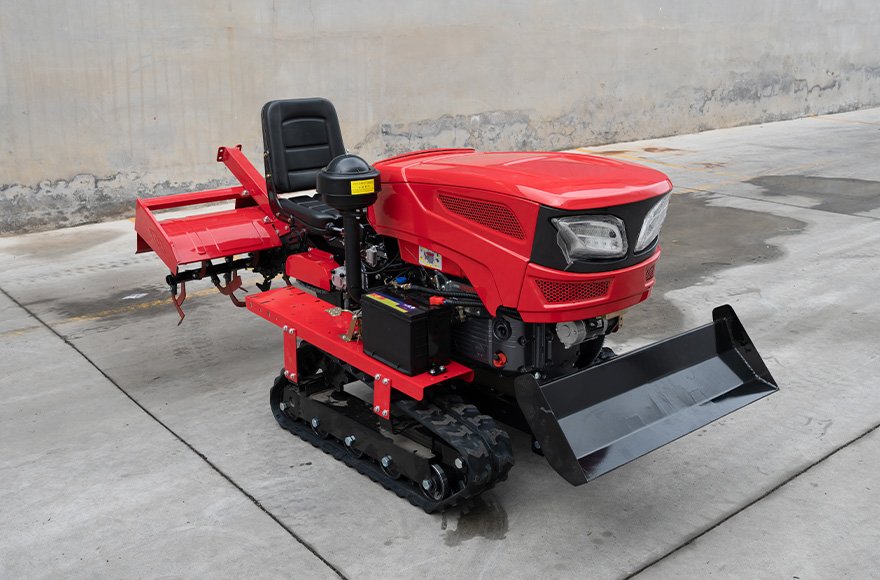

Advantages and Features

The configuration of high pattern triangle track, grounding pressure is small, wetland does not slip, paddy field does not sink, suitable for paddy field and various dry land operations. The steering wheel is designed to help with easy steering, automatic correction, soft and comfortable control. Front driving position and low center of gravity design, greatly improve the driving comfort. Engineered with wide rubber tracks for superior traction and minimal soil compaction, this machine outperforms wheeled alternatives in wet or soft conditions while its modular design supports seamless attachment of diverse implements including rototillers, backhoes, and dozer blades. The ergonomic operator station ensures comfort during extended use, and the unit’s compact footprint allows easy transport and storage without sacrificing the heavy-duty steel frame durability needed for continuous professional operation.

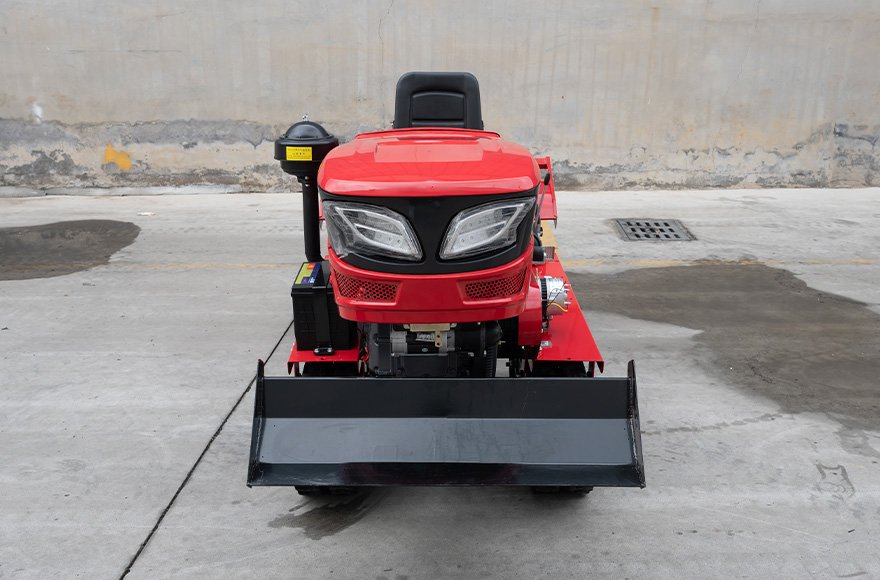

Details and Advantages

With tractor three-point suspension design, it can easily and quickly switch agricultural machinery. The rotary tiller adopts the design of through shaft, small load and no leakage till. Powered by fuel-efficient diesel engines ranging from 50HP to 120HP that comply with international emission standards, this unit features protected hydraulic lines and an accessible maintenance layout to minimize downtime. The front blade offers precise hydraulic grading control while the rear excavator arm achieves digging depths up to 2 meters, and optional upgrades like LED work lights or GPS modules further enhance operational efficiency and fleet management capabilities for modern agricultural demands.

Functions and Applications

Crawler rotary cultivator can be rotary farming, ridging, ditching, soil cultivation, weeding and other operations. Suitable for mountain, hills, orchards, vegetable gardens and greenhouses and other rotary farming and pastoral management operations. Ideal for tilling, plowing, and land clearing in rice paddies, vineyards, and orchards, this crawler tractor also excels at drainage ditching and earthmoving on inclines up to 30 degrees where traditional tractors fail. Its rapid switching capability between cultivation and excavation modes maximizes ROI by replacing multiple specialized vehicles, delivering consistent results for seedbed preparation, irrigation management, and rural road maintenance across diverse seasonal conditions.

PRODUCT PARAMETER

Technical Parameters

Overall Dimensions	3050×1060×1200mm (Ground clearance approx. 160mm)	Travel Speed	5 km/h
Diesel Engine Brand	QuanChai Engine	Working Speed	1–3 mu/hour
Total Machine Weight	750 kg	Air Filter Element	Oil-bath type
Fuel Consumption	1–2 L/mu	Water Tank	Water-cooled evaporative type (Do not let the tank run dry)
Transmission Mode	Belt Drive	Standard Equipped Farm Implements	Dozer width 100cm, Rotary tilling width 100cm, Furrowing depth 20cm/width 20cm, Weeding width 100cm, Backfilling width 100cm
Track Size	Width 180mm, 72×39	Gearbox	Custom full-gear gearbox (forward/reverse rotation, high/low speed)
Gears	3 forward gears, 1 reverse gear, total 8 gears with high/low speed	Engine Speed	2200 rpm

CUSTOMER QUESTIONS & ANSWERS

How do I place an order?

What documents do you provide for export?

Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Do you provide after-sales service overseas?

Yes, we have partnered service centers in key regions.

What's the lead time for orders?

Standard models ship in 15–30 days; customized units require 30–45 days.
