HC25HD 25HP Heavy Duty Crawler Tractor Supplier

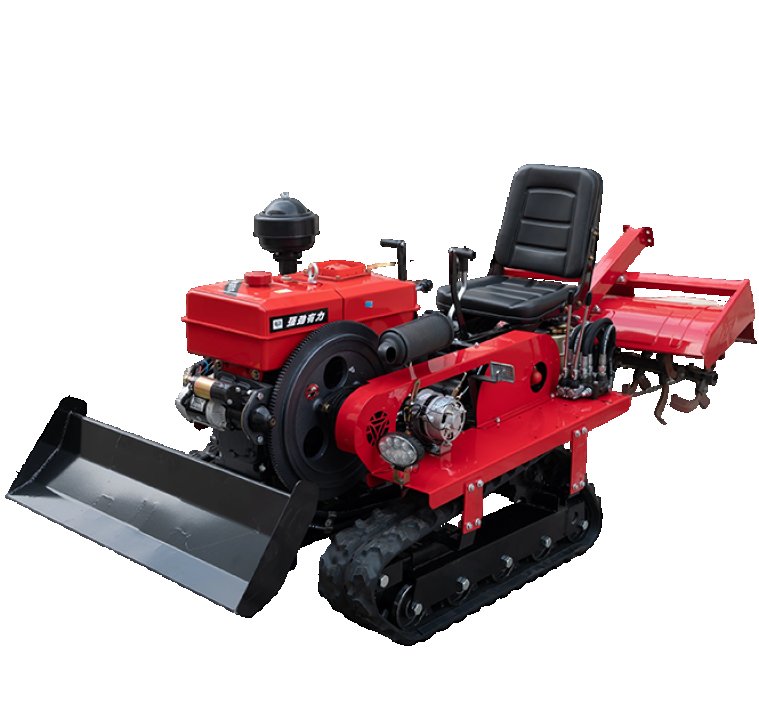

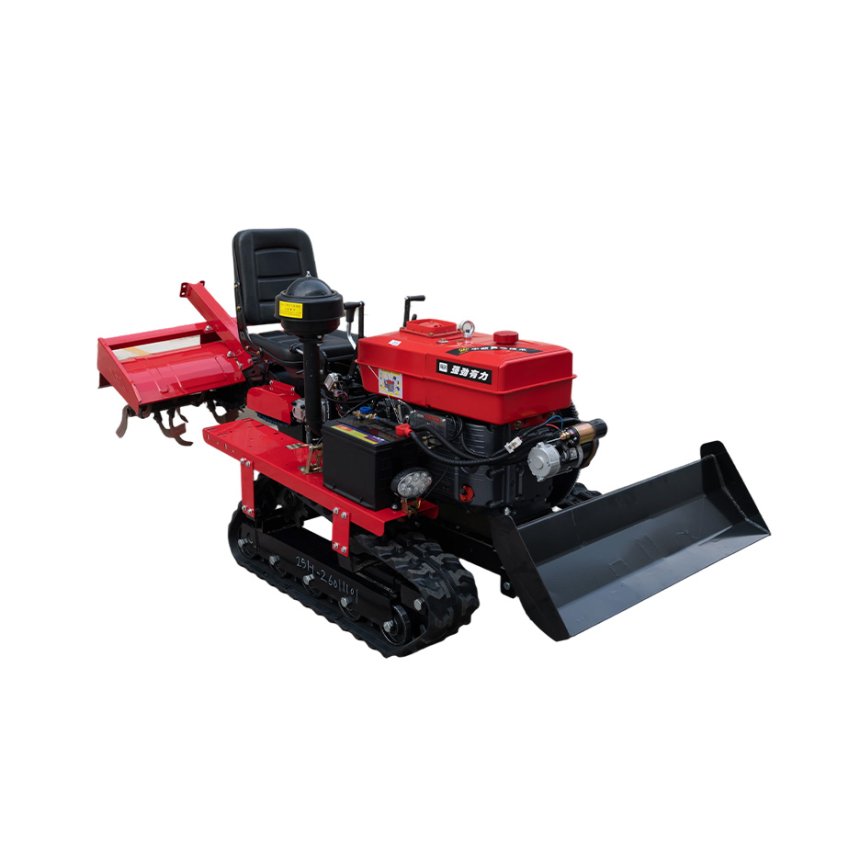

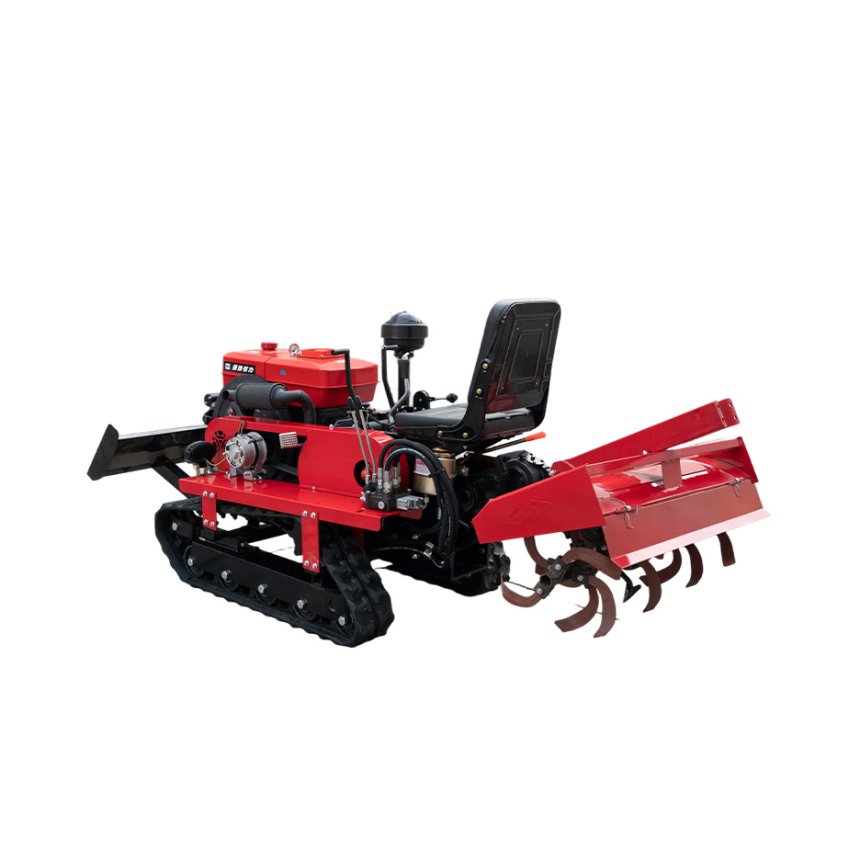

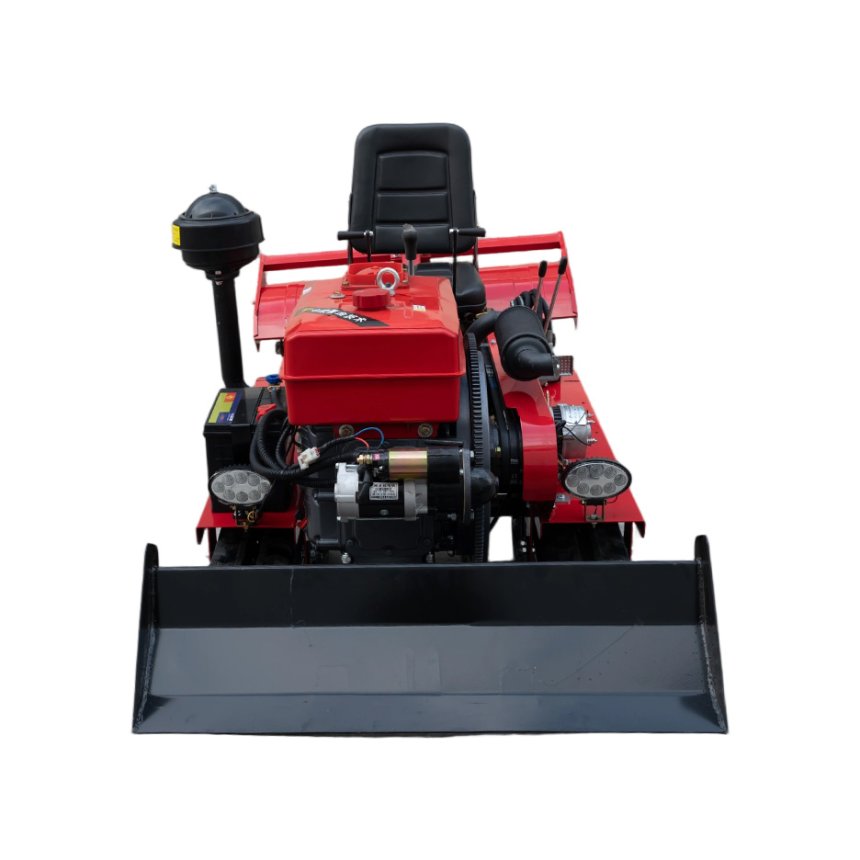

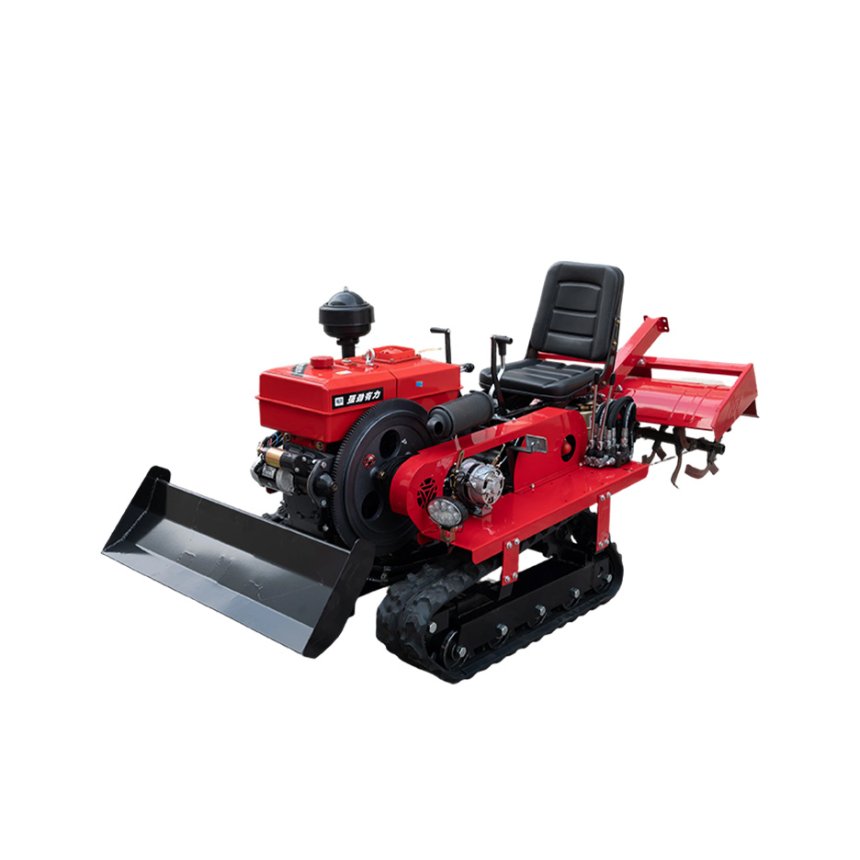

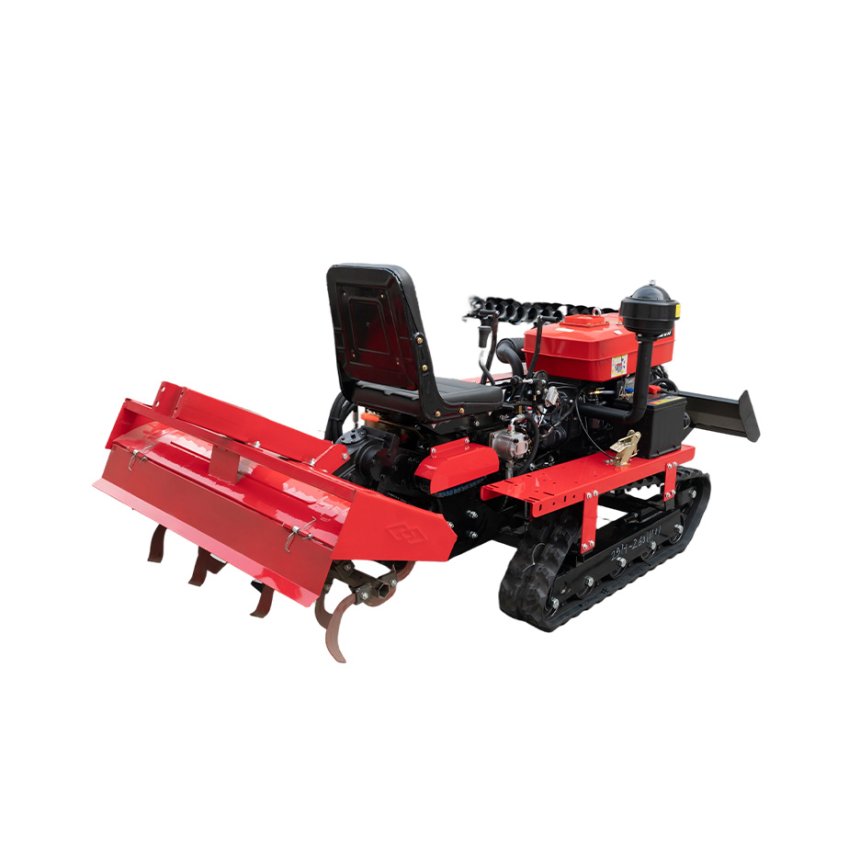

Crawler Tractor HC25H

The Crawler Tractor HC25H is a 25HP heavy-duty crawler tractor engineered for paddy fields, orchards, hilly terrain, and general agricultural operations. Featuring an extended chassis design, it provides increased track-to-ground contact for enhanced stability, traction, and control during both forward and reverse operation.

Designed for demanding farming conditions, the HC25HD delivers reliable performance with low fuel consumption and strong pulling power. Its multifunction attachment system supports rotary tilling, ditching, weeding, backfilling, and land leveling, making it an efficient solution for a wide range of field management tasks.

This advanced dual-purpose rotary tiller effortlessly transitions between paddy fields and dry land. With the capability to attach various agricultural implements, it caters to a wide range of farming requirements, ensuring optimal performance across different terrains.

Crawler Tractor

Crawler Tractor HC25H

An extended chassis design enhances the ground contact area of the tracks, ensuring superior stability during both forward and backward movements.

Request a Quote

Looking for a trusted crawler tractor manufacturer or wholesale supplier? Contact us today for product catalogs, technical specifications, OEM customization, and export pricing. We support distributors, agricultural equipment dealers, and farm project contractors worldwide with reliable machinery and professional service.

EPA Certified Quanchai Engine Factory Direct Price

[ 4.9 ] 22 REVIEWS

Minimum Order Quantity: 5

Get Best Price Add To Card

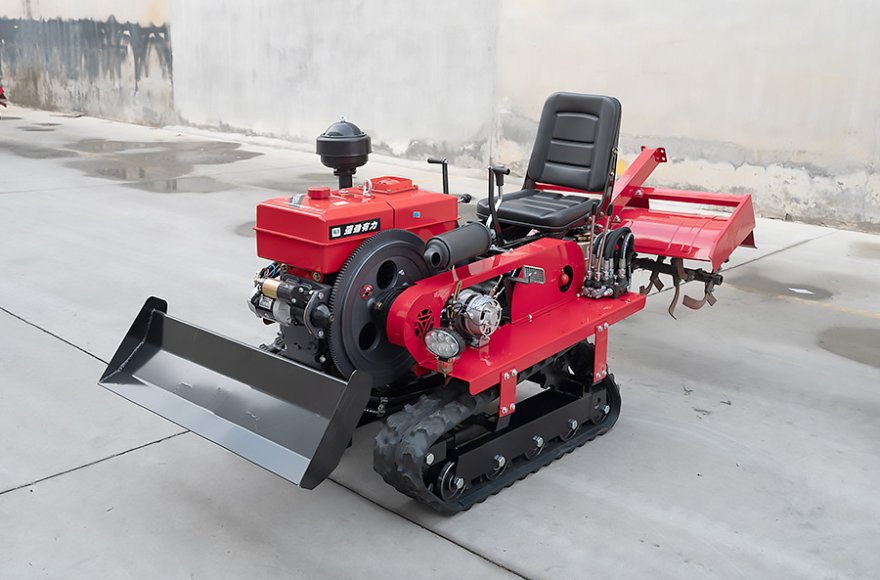

Overview and Introduction

Comprising mainly working parts, a robust frame, an efficient transmission system, and a power unit, this tiller employs belt transmission. This mechanism reduces strain on the power system, offering a certain level of engine protection.

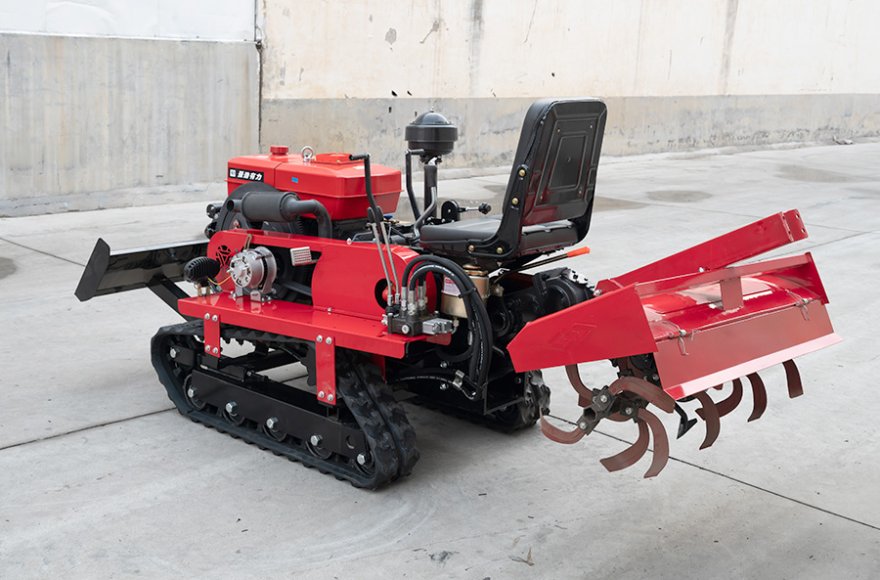

Advantages and Features

The configuration of high pattern triangle track, grounding pressure is small, wetland does not slip, paddy field does not sink, suitable for paddy field and various dry land operations. The steering wheel is designed to help with easy steering, automatic correction, soft and comfortable control. Front driving position and low center of gravity design, greatly improve the driving comfort.

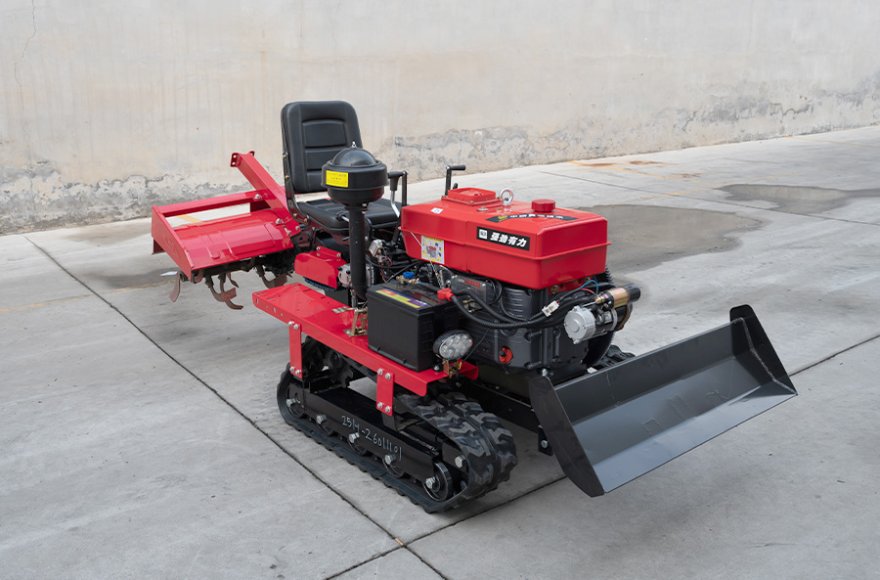

Details and Advantages

With tractor three-point suspension design, it can easily and quickly switch agricultural machinery. The rotary tiller adopts the design of through shaft, small load and no leakage till.

Functions and Applications

Crawler rotary cultivator can be rotary farming, ridging, ditching, soil cultivation, weeding and other operations. Suitable for mountain, hills, orchards, vegetable gardens and greenhouses and other rotary farming and pastoral management operations.

PRODUCT PARAMETER

Technical Parameters

Parameter	Specification	Parameter	Specification
Overall Dimensions	2700×1060×1200 (Chassis height approx. 190mm)	Travel Speed	2 km/h
Diesel Engine Brand	Quanchai Engine	Working Efficiency	1–2 mu/hour (approx.)
Machine Weight	650 kg	Air Filter Element	Oil filter type
Fuel Consumption	1–2 liters/mu	Water Tank	Water-cooled evaporative type; must keep water level sufficient
Transmission Type	Belt drive	Standard Attachments	Dozer width 90cm, Rotary tiller width 100cm, Ditching: depth 20cm × width 20cm, Weeding width 100cm, Backfilling width 100cm
Track Dimensions	Width 180mm, 72×36	Gearbox	Custom all-gear transmission
Gear Positions	3 forward gears, 1 reverse gear, total 8 gears with high/low speed ranges	Engine Speed	2200 rpm

CUSTOMER QUESTIONS & ANSWERS

How do I place an order?

What documents do you provide for export?

Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Do you provide after-sales service overseas?

Yes, we have partnered service centers in key regions.

What's the lead time for orders?

Standard models ship in 15–30 days; customized units require 30–45 days.
